Electric Vehicle 7 kW Mini Wallbox Charger

Basic Information
Place of Origin: China
Brand Name: EN plus
Certification: CE
Model Number: AC7000-AE-05
Minimum Order Quantity: 50
Price: FOB: 250~390 USD
Packaging Details: Cartons
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 10000 per month
Standards: IEC 61851-1:2017;IEC 62196-2 Installing Mode: Wall Mounted/Pedestal
Power Wiring: 1P+N+PE Rated Voltage: 230 VAC
Rated Output Current: 32A Rated Frequency: 50Hz/60Hz
Working Temperature: -25℃~+50℃ IP Grade: IP65
Standby Loss: <15W Ambient Relative Humidity: ≤95%
Main Proetction Function: Overcurrent Protection Type-B Leakage Protection; Overvoltage Protection Undervoltage Protection Relay Over-temperature Protection; Charging Connector Holder Over Temperature Protection; CP Fault Protection; Relay Adhesion Protection;
High Light:

commercial electric vehicle charging stations

,

smart car charging station

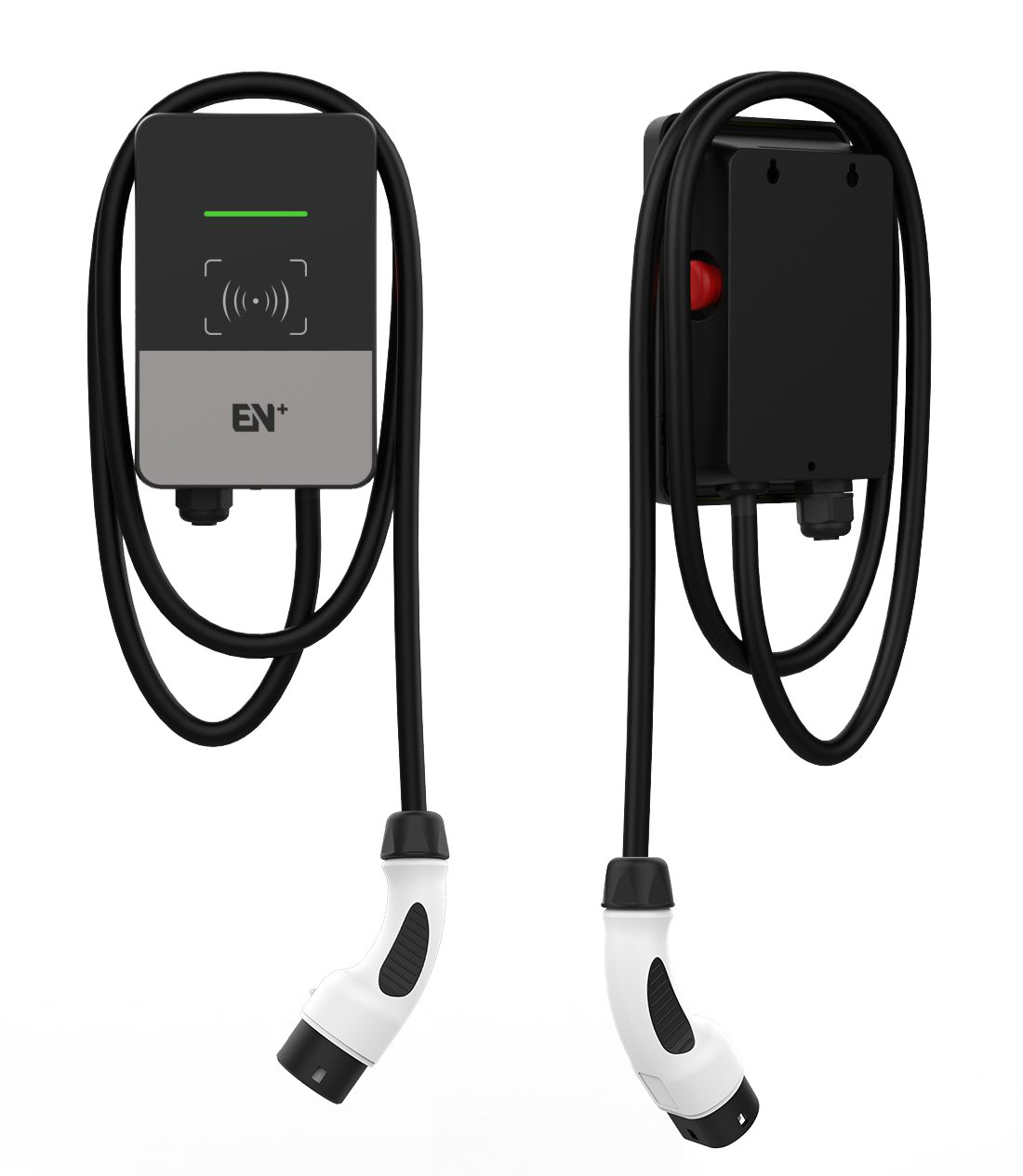

Electric Vehicle 7 kW Mini Wallbox Charger

Electric Vehicle 7 kW Mini Wallbox Charger 0



Product description



Home charger is the single phase 7kW AC charger with maximum 32A output current, specially designed for private use.

With half size of A4 paper .It saves space and is easy to operate, which is an ideal solution for your home or company.

The charger is equipped with RFID card function for ID authentication to prevent theft of electricity. Only the user with RFID card has access to the charging.



Key Features:

Power: 7kW

Output Current: 32A

Charging Outlet: One Type 2 charging gun (can be customized)

RFID function

Protection Grade: IP65

Warranty: 2 years



Cost Effective

  • Half size of A4 paper, compact design
  • Home use with competitive price

Flexible Option

  • Type 1 or Type 2 charging cable
  • 16A or 32A adjustable output current
  • RFID authentication, optional with plug and play

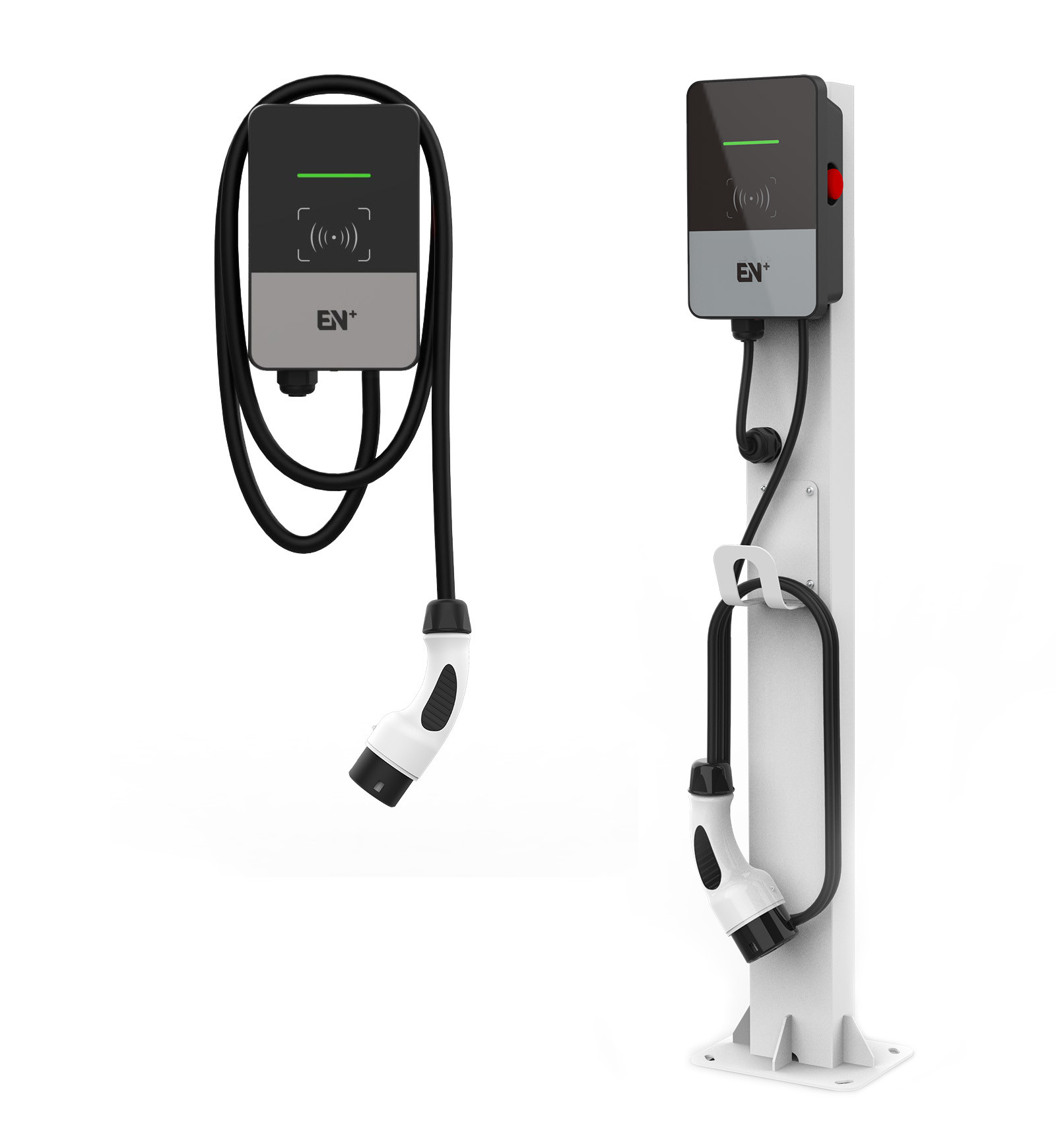

  • Wall-mounted or floor-stand installation

Simple Operation

  • Start/Stop charging by RFID card
  • Simple HMI with LED indicators

Secure and Safe

  • Over temperature protection
  • Residual current detection

Starting Charging Your Car


1
2
3
4



Specification Model AC7000-AE-05
AC Nominal Input Phases/Lines 1 phase + netural+ PE
Voltage 230V±10%
Frequency 50Hz
AC Nominal Output Voltage 230V±10%
Current 32A
Power 7KW
Structure Design Housing Material Plastic PC940
Installation Method Wall-mount/Floor-stand
Wall-mount Bracket Not necessary
Charging Outlet One charging gun(Type 2)
Cable Length 4 M
LED Indicator Green/Yellow/Red color for different status
LCD Screen No
Emergency Stop Button Yes
RFID Function Yes
RFID Card 2pcs Mifare card
Environmental Index Operating Temperature - 30~ + 50℃
Working Humidity 5%~95% without condensation
Working Altitude <2000M
Protection Grade IP65
Application Site Indoor/Outdoor
Cooling Method Natural cooling
Security Protection Multiple Protection Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection
MTBF 100,000 hours
Safety Standard IEC 61851-1:2017,IEC 62196-2:2016
Warranty 2 years
Package Information Product Dimension 233*150*69.5MM
Package Dimension 480*340*135MM
Net Weight 3.6KG
Gross Weight 4.5KG
External Packing Carton
