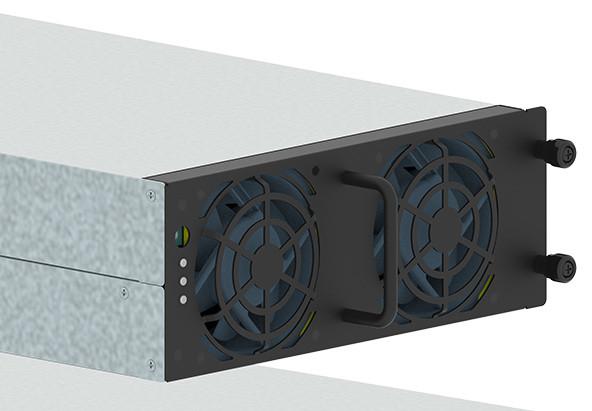

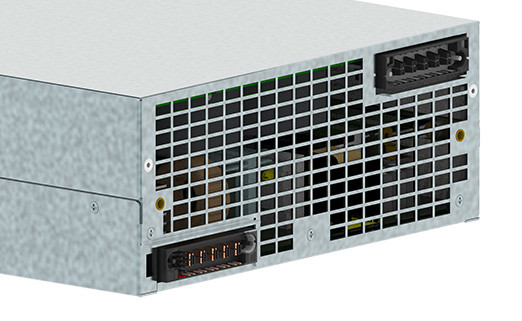

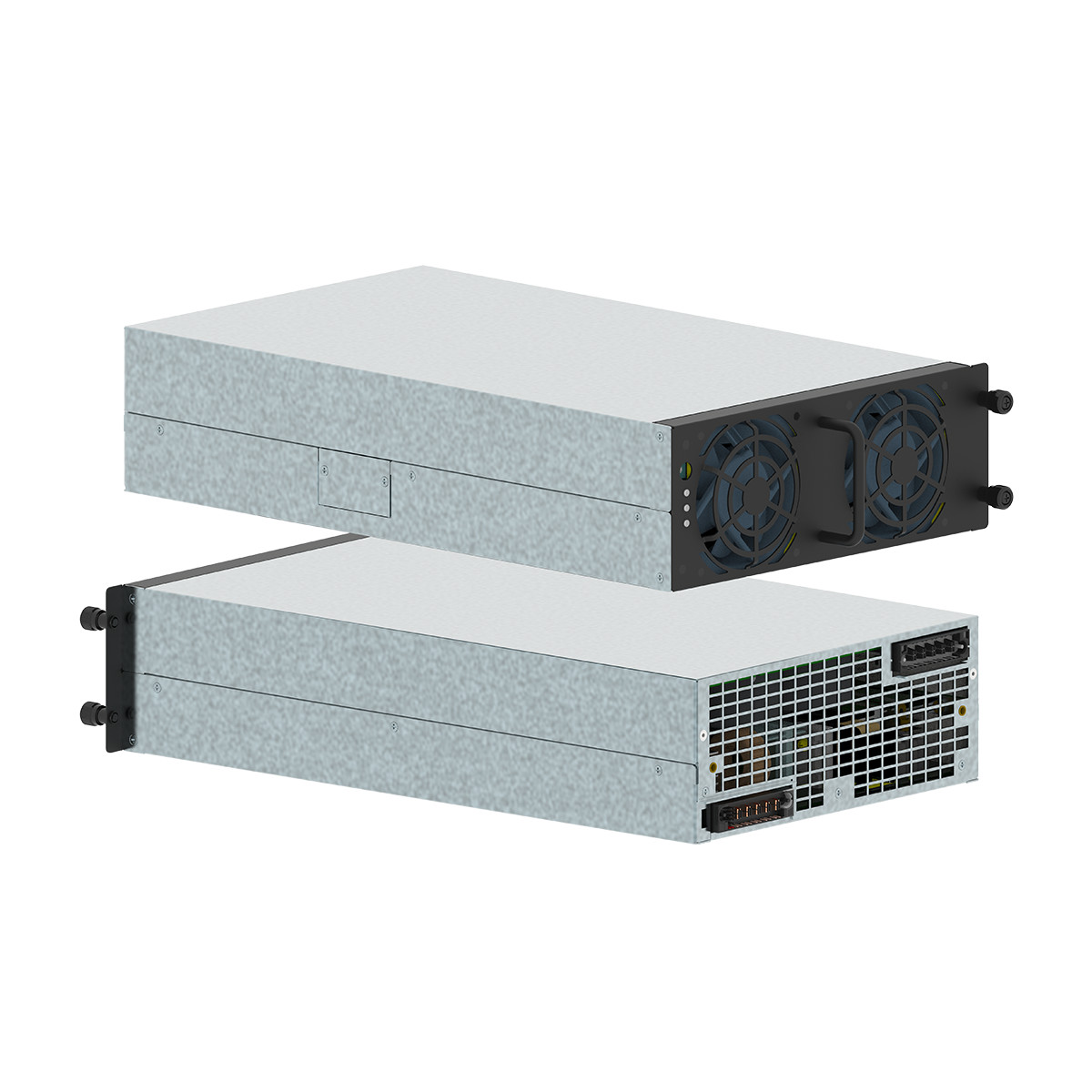

20 KW 750V Electric Vehicle Charging Module For DC Fast Charger

Basic Information
Place of Origin: CHINA
Brand Name: EN plus
Model Number: DCM75034
Minimum Order Quantity: 100
Price: FOB: 750 USD
Packaging Details: Cartons
Delivery Time: 30 work days
Payment Terms: T/T, L/C,
Supply Ability: 20000 PER MONTH
Voltage Level: 750 V Power Factor: ≥ 0.99
THDi: ≦ 5% Output Voltage Range: 200Vdc To 750Vdc
Output Current Range: 0 To 33A Rated Output Power: 20 KW
Stabilized Voltage Precision: ≤ ±0.5% Stabilized Current Precision: ≤ ±1%
Current Unbalance: < ±3% Ripple Voltage: < 1V
Efficiency: ≥ 96.3% Standby Power Consumption: < 8W
MTBF: > 120,000 Hours Working Temperature: -30℃ To +55℃ Full-load +55℃ To +75℃ (Used In The Derated Status)
Communication Mode: CAN Exterior Size (H X W X D): 395*225*87MM (D*W*H)
Weight: <10 KG
High Light:

electric vehicle charging module

,

ev charger module

20 Kw 750V Charging Module For DC Fast Charging Station

Product Introduction20 KW  750V Electric Vehicle Charging Module For DC Fast Charger 0
The DCM75034 charging module is the core part of the EV chargier, adopting the latest optimized hardware design, with advanced control algorithms, made with advanced manufacturing technology, specially developed for EV charging station. It can compatible with almost all EV charging requirements, the module has the advantages of excellent low-voltage constant-current capability, high weighted efficiency in the full power range, large ultimate temperature range and lower standby power loss. It makes charging system operation safe, reliable, economic and high adaptability to the environment.

Functions

Application Scenarios:
DC Charging Stations for Pure electric passenger Bus, Electric Public Bus, Electric Minibus, Electric Logistic Vehicles.

Technical Parameters


DatasheetModelDCM75034
InputPower Supply3P+PE
Input Voltage260~470V AC
Max. Input Current40A
Startup Impulse Current≤44A
Input Frequency50/60Hz
Standby Power<8W
OutputOutput Voltage200~750V DC
Maximum Current33A
Rated Power20KW
Constant PowerNo
Electrical ParameterPower Factor≥0.99 @ 50%~100% loading
THD≤3% @ 100% loading
Efficiency≥96%
Steady Voltage Accuracy≤±0.5%
Steady Current Accuracy≤±1%
Voltage Deviation≤±0.5%
Current Deviation≤±0.1A @ load current <10A, ≤±1% @ load current ≧10A
Ripple FactorPeak factor<1%, RMS factor<0.5%
Current Imbalance≤5% @ 50%~100% loading
Soft Start Time≤6S
Power OvershootNo
Sleep FunctionYes
User InterfaceEnclosureAluminized Zinc plate (SGLCC)
LED IndicatorGreen/Yellow/Red
CommunicationConfigurationManual/Auto
ProtocolCAN
SefetyIngress ProtectionIP20
Electrical ProtectionOver current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
CertificationCE
Certification StandardEN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Warranty2 Years
EnvironmentInstallationSlots
Cooling MethodFan cooling
Noise≤65dB @ 100% loading
Work Temperature-30℃~+50℃
Work Humidity5%~95%
Work Altitude<2000M
PackageProduct Dimension395*225*87MM (D*W*H)
Package Dimension490*305*167MM (L*W*H)
Net Weight10KG
Gross Weight12KG
External PackageCarton


Features
