Movable Prefabricated Cabin Energy Storage System With Hydraulic Lifting System

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: TIMS/100/0.38AC
Minimum Order Quantity: 1
Price: FOB: 50,000~300,000 USD
Packaging Details: container
Delivery Time: 35 work days
Payment Terms: T/T, L/C
Supply Ability: 50 per month
AC Side Parameter: AC Side Parameter Rated Power: 100kW
Rated Voltage: DC652V Voltage Range: DC581V-DC734V
Rated Frequency: 50Hz Frequency Range: 45Hz 55Hz
Current Range: 160A DC Side Parameter: DC Side Parameter
Battery Capacity: 400kWh Basic Characteristics: Basic Characteristics
On- Grid/off-grid Switching Time: ≤10ms Efficiency: ≥95%
Protection Level: IP54 Operating Temperature: - 25℃ ~+45℃
Storage Temperature: - 40℃ ~+70℃ Relative humidity: ≤95%RH, No Condensation
Altitude: ≤2000m Communication Interface: 2 RS485 Port, 2 Ethernet Port
Size (W*D*H): 2600mm*3850mm*2896mm (Can Be Customized) Weight: 9.45T
High Light:

microgrid system

,

microgrid power system

Energy Storage System In A Movable Prefabricated Cabin With Hydraulic Lifting System, Can Be Customized

The ANE movable energy storage system integrates cabin, energy storage system, quick switch cabinet, system control cabinet, energy management system and hydraulic system. Features with easy moving and installing, suitable for power capacity increase, peak load shifting, power grid reconstruction, temporary power supply, standby power supply and other scenarios.

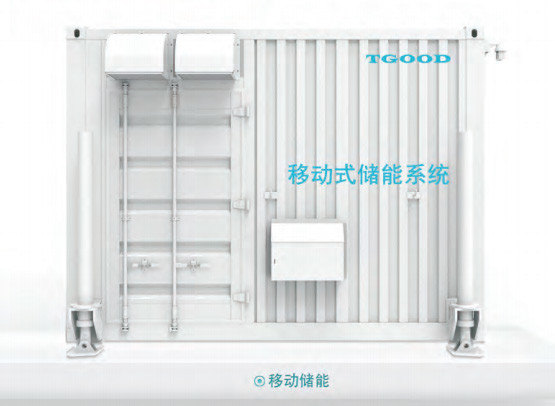

Movable Prefabricated Cabin Energy Storage System With Hydraulic Lifting System 0

System features



Plug and play

Small and compact, high integration, external connection interface reserved, very convenient to make quick connection.

Easy expansion

By droop control, realizing the function of multi-machine parallel connection without communication, with flexible access and convenient capacity expansion.

Dual layers of protection

Dual layers of protection from equipment and data, constructing the multi-dimensional, multi-angle and systematic charging-discharging safety model from the aspects of space and time, ensure the system’s safe and reliable operation.

Seamless switching

Integrated on/off grid quick switching system, making the switching in millisecond, without important load power failure.

Functional diversity

The system integrates the functions of energy storage converter, reactive compensation, harmonic control, off-grid operation and other power products

Flexible charging & discharging

Dynamically adjust the charging strategy, multi-stage adjustment and multi-dimensional compensation, referring to the charging & discharging power demand, power grid information, battery information, environmental parameters, historical data system and other influencing factors, making charging & discharging with optimal current and voltage to extend the battery life.

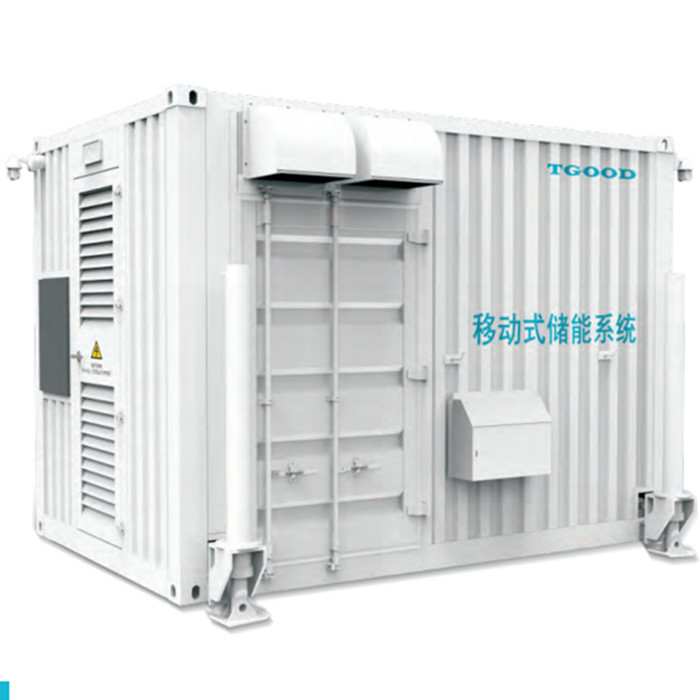

Movable Prefabricated Cabin Energy Storage System With Hydraulic Lifting System 1

Model TIMS/100/0.38AC
AC side parameter
Rated power 100kW
Rated Voltage AC380V
Voltage range AC380V±10%
Rated frequency 50Hz
Frequency range 45Hz 55Hz
Current range ±160A
DC side parameter
Rated power 100kW
Rated Voltage DC652V
Voltage range DC581V-DC734V
Current range ±160A
Battery capacity 400kWh
Basic characteristics
On- grid/off-grid switching time ≤10ms
Effectiveness ≥95%



Protection level

IP54



Operating temperature - 25℃ ~+45℃
Storage temperature - 40℃ ~+70℃
relative humidity ≤95%RH, no condensation
altitude ≤2000m
Power Interface

1 /160A port (three-phase four-wire)

1/ 70A port (three-phase four-wire)

1 / 35A port (three-phase four- wire)

1 / 16A port (single phase)

Communication interface 2 RS485 port, 2 Ethernet port
Size (W*D*H)

2600mm*3850mm*2896mm

(Can be customized)

Weight 9.45T

All performance and parameters shall be subject to the latest confirmation of our technical department.
