60 KW / 120 KW AC/DC Charging And Discharging System For electric vehicle

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: TCFD-0.4/DC0.95/60K/TCFD-0.4/DC0.95/120K
Minimum Order Quantity: 1
Price: FOB: 20,000 USD~35,000 USD
Packaging Details: wooden box
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 50 per month
BMS Auxiliary Source: DC12V/DC24V Effectiveness: ≥95%
Standby Power Consumption: <60W Protection Level: IP54
Startup Mode: Swipe, Mobile App, Local Boot, VIN Boot Display: Touch Screen LCD
Operating Temperature: -25°C~+55°C (-20°C~+50°C Full Load) Relative Humidity: 95% RH, No Condensation
Altitude: 2000m (2000~4000m Power Derating) Size (W*D*H): 900mm*700mm*2150mm
Weight: 300kg (without Power Module)
High Light:

microgrid system

,

microgrid power system

60 KW / 120 KW AC/DC All-In-One Charging And Discharging System For Vehicle To Grid

60 kW/120kW All-in-one charging and discharging system is a highly intelligent charging and discharging product developed for the new energy electric vehicle market. The product supports charging and discharging functions in conditions of off-grid/on-grid, suitable for different charging scenarios, providing safe, reliable, stable and efficient charging service for electric vehicles.

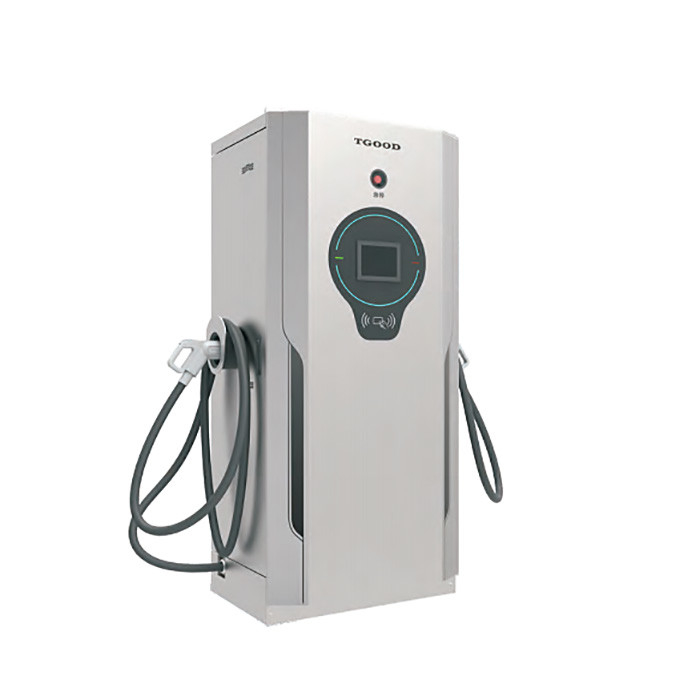

60 KW / 120 KW AC/DC Charging And Discharging System For electric vehicle 0

Features:

Peak valley shifting, regulating the power grid

——When the grid load is too high, electric vehicles will discharge to the grid to supplement the grid system.

Electric vehicles making mutually charging when power grid blackout in emergency rescue cases

——When the power grid goes down, the vehicles with high electric power can charge the ones with low electric power directly, so as to avoid waiting for electric power in place and thus unable to drive.

Regularly charge and discharge, protect the battery

——If the electric vehicle is placed for a long time, it will be periodically charged and discharged to protect the battery insides the vehicle.

Low price charge and high price discharge, earn price difference

——When electricity price is low, electric vehicles charge and buy electricity from the grid; when the electricity price is high, electric vehicles discharge and sell electricity to the grid for profits.

Circulation charging and discharging, battery inspection

——Charge the battery fully when the electric vehicle is fully discharged, and the charging power is compared with the battery calibration power to check the battery health status.



Technical Parameters:

  Model TCFD-0.4/DC0.95/60K   TCFD-0.4/DC0.95/120K
  Power level 60kW   120kW
  AC side grid-connected parameters
  Voltage range AC380V±15%     AC380V ± 15%
  Input Current ±90A   ±180A

  Power factor ≥0.99   ≥0.99

  Harmonic content THDi ≤5%   ≤5%
  AC side off-grid parameters
  Rated voltage     AC380V

  Output frequency     50Hz/60Hz

  Harmonic content THDu     ≤3%

  With unbalanced load capacity     100%

  DC side parameters
  Output voltage DC200V~DC950V   DC200V~DC950V
  Output total power 60kW     120kW
  Output maximum current ±160A     ±320A
  Stabilized voltage precision     ≤0.5%
  Stabilized current precision     ≤1%
  Basic characteristics
  BMS auxiliary source   DC12V/DC24V
  Effectiveness     ≥95%
  Standby power consumption     <60W
  Protection level     IP54
  Startup mode Swipe, mobile app, local boot, VIN boot
  Display   Touch screen LCD
  Charging interface     2
  Operating temperature -25°C~+55°C (-20°C~+50°C full load)
  Relative humidity   95% RH, no condensation
  Altitude 2000m (2000~4000m power derating)
  Size (W*D*H)   900mm*700mm*2150mm
  Weight   300kg without power module
  Protection
  Input overvoltage protection     Support
  Input undervoltage protection     Support
  Output overvoltage protection     Support
  Short circuit protection     Support
  Over temperature protection     Support

All performance and parameters shall be subject to the latest confirmation of our technical department.
