15 KW DC To DC converter For Energy Storage / Charging / Discharging System

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: DT950N15E
Minimum Order Quantity: 10
Price: FOB: 800 USD~10,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Isolation Transformer: Support DC Start On Both Sides: Support
Efficiency: ≥97% Standby Power Consumption: <25W
Mean Time Between Failure (MTBF): >120000 Hours Operating Temperature: - 40℃~ +75℃( Above +55℃ Power Derating )
Working Humidity: ≤95%RH,no Condensation Storage Temperature: - 40℃~+75℃
Cooling Method: Intelligent Forced Air Cooling Altitude: <2000m
Communication: CAN Protection Level: IP20
Noise: <65dB Weight: 11kg
Size (W*D*H) 430mm*500mm*130mm: 219mm*534.5mm*83mm Maximum Number Of Parallel Machines: 60
High Light:

dc dc power supply module

,

dc to dc power module

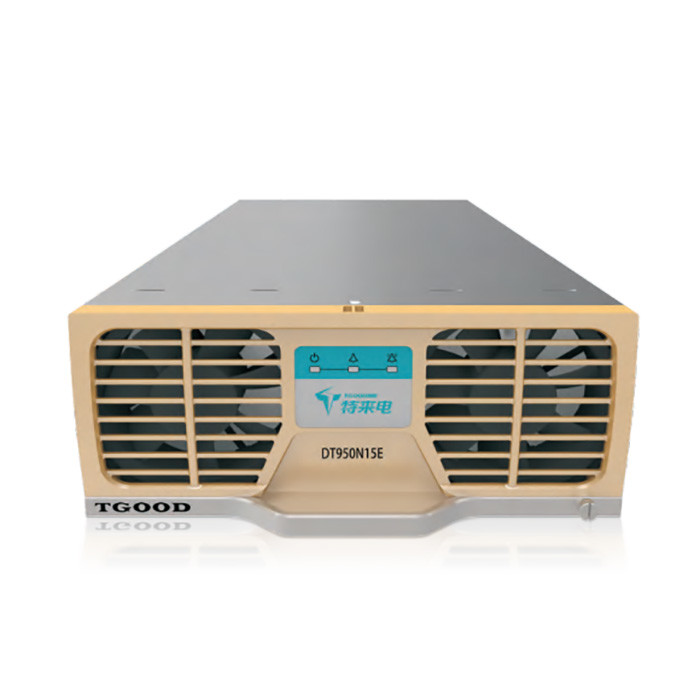

15 KW Bidirectional DC/DC Power Module For Energy Storage / Charging / Discharging System

ANE DT950N15E adopts the latest optimized hardware design, combined with advanced control algorithms and advanced manufacturing technology. It is a real-time bidirectional DC/DC power supply module specially developed for automotive charging and discharging equipment and energy storage equipment. It is compatible with charging and discharging of almost all models. The module has the advantages of ultra-wide voltage range, excellent low-voltage constant current capability, high-power range weighting efficiency, wide temperature limit working range, and minimal standby power consumption. The charging system is safer, more reliable and more adaptable to the environment.



Features:



  1. With energy real- time bidirectional flow technology, the switching time is less than 20ms;
  2. Dual port startup with port anti- reverse detection and protection technology;
  3. Interleaved parallel technology reduces capacitance ripple current and improves module life;
  4. Ultra- wide output voltage range, A port (DC200V- DC950V), B port (DC300V- DC900V), to meet the charging and discharging needs of most electric vehicles;
  5. Ultra-wide operating temperature range, -40 ℃ ~ +55℃ can achieve full load work, 5℃ higher than the industry products;
  6. Modular structure, improve system reliability, maintainability, and easy to expansion;
  7. Pulse group active intelligent high- speed discharge technology, automatic bleeder circuit to improve system reliability;
  8. Multi-dimensional intelligent fan adjustment to reduce power consumption and noise;
  9. The dual intelligent DSP design realizes the full digital control of the charging module and determines the high reliability of the control;
  10. Multiple safety protection:input over voltage, under voltage protection; output short circuit protection; over temperature protection; air duct abnormality detection.



Technical parameter

Model DT950N15E
Power 15kW
A port
Voltage range DC200V~DC950V
Constant power voltage range DC420V~DC950V
Current range ±40A
Stabilized voltage precision ≤0.5%
Stabilized current precision ≤1%
Voltage ripple ≤1%
B port
Voltage range DC300V~DC950V
Constant power voltage range DC720V~DC950V
Current range ±20.8A
Stabilized voltage precision ≤0.5%
Stabilized current precision ≤1%
Voltage ripple ≤1%
Basic characteristics
DC start on both sides Support
Efficiency ≥97%
Switching time ≤5ms
Isolation transformer Support
Standby Power ≤25W
Communication mode CAN
Operating temperature - 40℃~ +75℃( above +55℃ power reduction )
Storage temperature - 40℃~75℃
Relative humidity ≤95%RH, no condensation
Altitude 2000m
Noise ≤65dB
Protection level IP20
MTBF 120000 hours
Service life 12 years
Cooling method Intelligent forced air cooling
Maximum number of parallel machines 60
Size (W*D*H) 219mm*534.5mm*83.0mm
Weight ≤11kg

All performance and parameters shall be subject to the latest confirmation of our technical department.
