Energy Storage / Micro Grid System DC DC Converter Module 50 KW Bidirectional

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: TID10050M100NK
Minimum Order Quantity: 10
Price: FOB: 1,000 USD~10,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Forward And Reverse Switching Time: ≤100ms DC Start On Both Sides: Support
Efficiency: ≥97% Standby Power Consumption: <30W
Mean Time Between Failure (MTBF): >100000 Hours Operating Temperature: 25℃~ +55℃( Above +50℃ Power Derating )
Working Humidity: ≤95%RH,no Condensation Storage Temperature: - 40℃~+75℃
Cooling Method: Intelligent Forced Air Cooling Altitude: <2000m
Communication: RS485,CAN Protection Level: IP20
Noise: <75dB Weight: 23.5kg
Size (W*D*H) 430mm*500mm*130mm: 430mm*500mm*130mm Reactive Power Compensation: Support
High Light:

dc dc power supply module

,

dc to dc power module

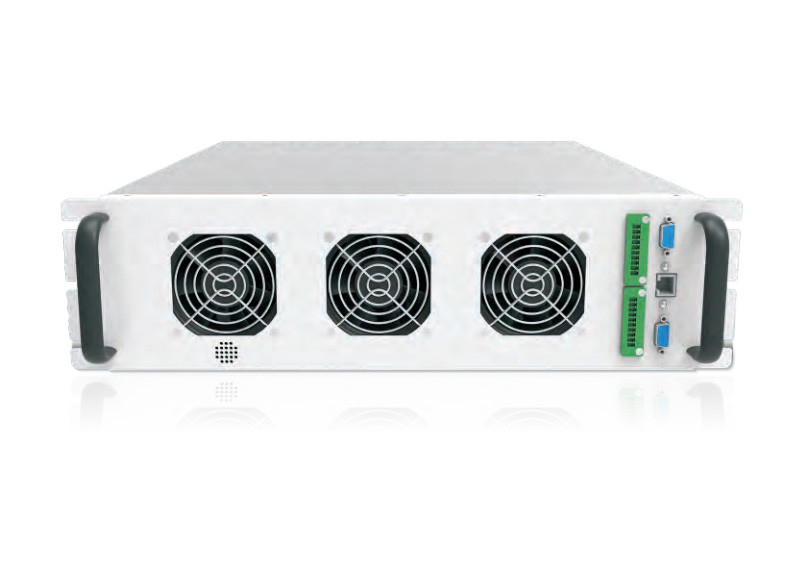

50 KW Bidirectional DC/DC Converter Module For Energy Storage / Micro-grid System

ANE bidirectional DC/DC converter module adopts the latest optimized hardware design, with advanced control algorithms, supplemented by advanced manufacturing technology, multi-machine parallel power range of 50-630kW. The module has fast forward and reverse switching speed, ultra wide constant power range, excellent The low-voltage constant current capability, the high-power range weighting efficiency, the extreme temperature working range, and the standby power consumption are extremely small.Suitable for a variety of DC conversion applications. The independent air duct design enables the module to effectively cope with various complex application environments, and the system runs safer,more reliable, economical and more environmentally adaptable.



Features:



  1. The low- voltage side has a wide output range and a wide range of applications;
  2. High power density, high dynamic response;
  3. Ultra- wide constant power range, excellent low-voltage constant current capability, output current up to 110A;
  4. High reliability and protection, high temperature resistance, humidity, salt spray and other harsh environments, reducing operating costs;
  5. -25℃~+50℃ wide temperature range, -25℃~+50℃ full load operation;
  6. Four-dimensional intelligent wind speed control technology effectively reduces loss and noise and ensures product reliability.



Product function:



  1. Real energy bidirectional flow, seamless switching in forward and reverse, high dynamic response;
  2. High efficiency, greatly reducing machine loss, energy saving, reliable and durable;
  3. Ultra- wide voltage range of low voltage side, DC50V-DC1000V, to meet more needs;
  4. The new generation of intelligent DSP design realizes the full digital control of the module and determines the high reliability of the control;
  5. Hot- swappable design for easy installation and use;
  6. Multiple safety protection:input over voltage, under voltage protection; output short circuit protection; over temperature protection; air duct abnormality detection.

Technical parameter



Model TID10050M100NK
Low voltage side parameters
Rated power 50kW
Maximum power 55kW
Rated voltage DC500V
Voltage range DC50V~DC1000V
Current range ±100A
Stabilized voltage precision ≤0.5%
Stabilized current precision ≤1%
Voltage ripple ≤1%
High voltage side parameters
Rated power 50kW
Maximum power 55kW
Rated voltage DC800V
Voltage range DC420V~DC1050V
Current range ±100A
Stabilized voltage precision ≤1%
Basic characteristics
DC start on both sides Support
Forward and reverse switching time ≤100ms
Efficiency ≥97%
Overload capacity 1.1 times ≥10min,1.2times≥1min
Standby Power <30W
MTBF >100000 hours
Operating temperature - 25℃~ +55℃( above +50℃ power reduction )
Relative humidity ≤95%RH, no condensation
Storage temperature - 40℃~75℃
Storage humidity ≤95%RH
Cooling method Intelligent forced air cooling
Altitude 2000m
Communication mode RS485,CAN
Reactive power compensation capability Support
Protection level IP20
Noise ≤75dB
Weight ≤23.5kg
Size (W*D*H) 430mm*500mm*130mm

All performance and parameters shall be subject to the latest confirmation of our technical department

.
