2.5Vdc-100Vdc 18 KW Bidirectional High Frequency Isolated AC DC Converter For Battery Testing Equipment

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: BTLA-MTS018-300L-01
Minimum Order Quantity: 10
Price: FOB: 5,000 USD~7,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Isolation Transformer: Supports AC And DC Starting Capability: Supports
Voltage Range: 2.5Vdc-100Vdc Current Range: ±300A
Forward And Reverse Switching Time: <12ms Mean Time Between Failure (MTBF): >100001 Hours
Operating Temperature: -20℃~+46℃ Cooling Method: Forced Air Cooling
Altitude: <3001m Communication: CAN,RS485,Ethernet,
Reactive Power Compensation: Supports Protection Level: IP20

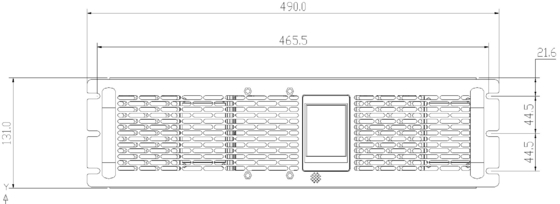

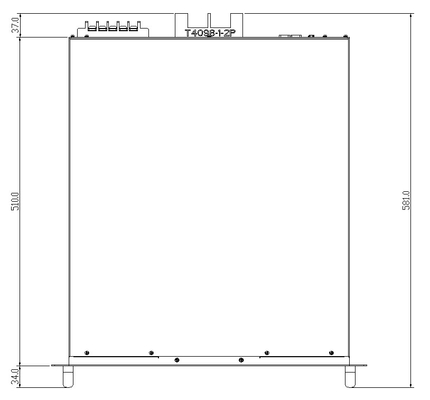

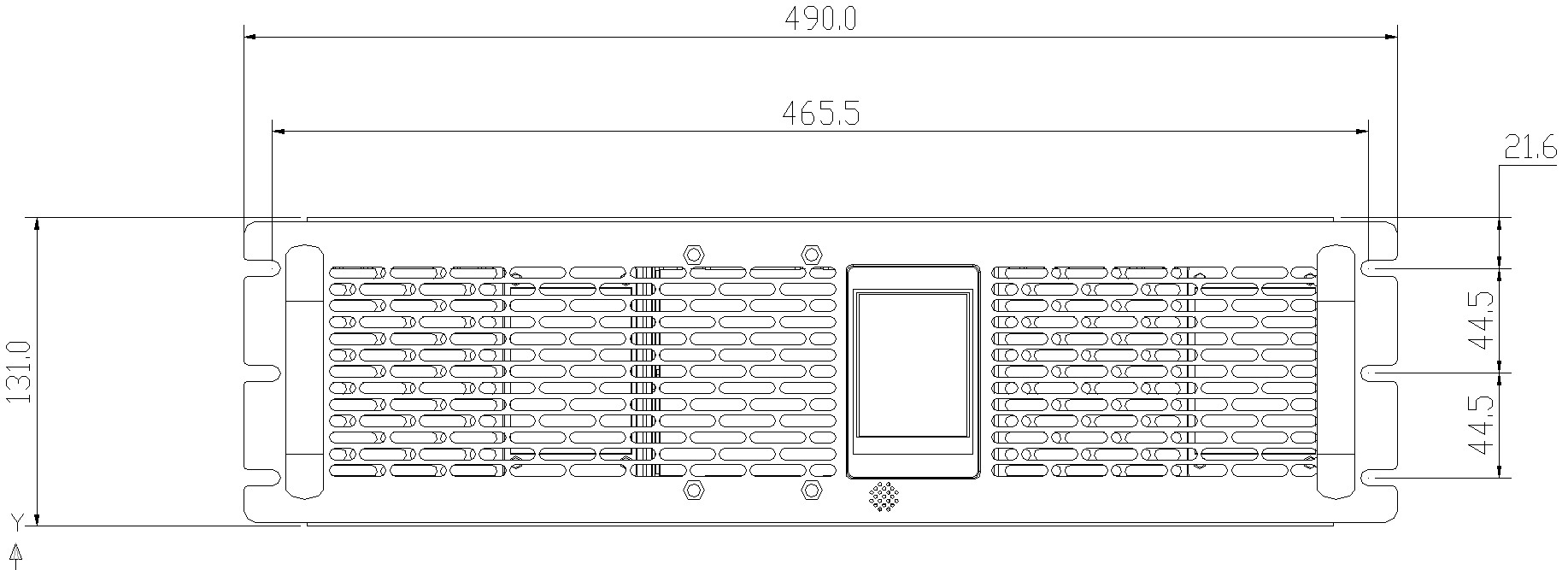

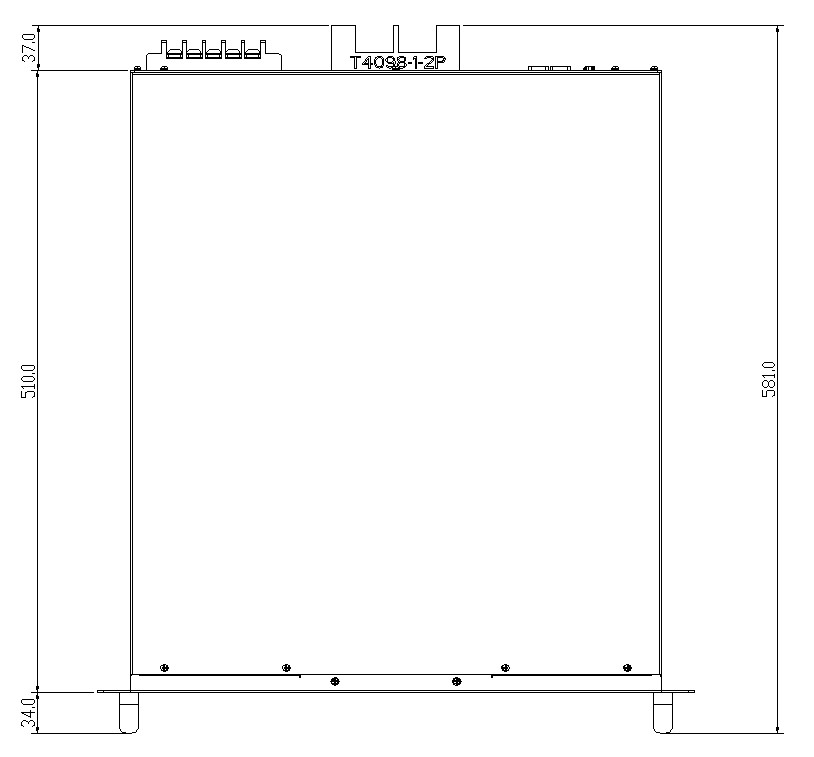

Weight: 26.1kg Size (W*D*H) 430mm*500mm*130mm: 131*465.5*510mm

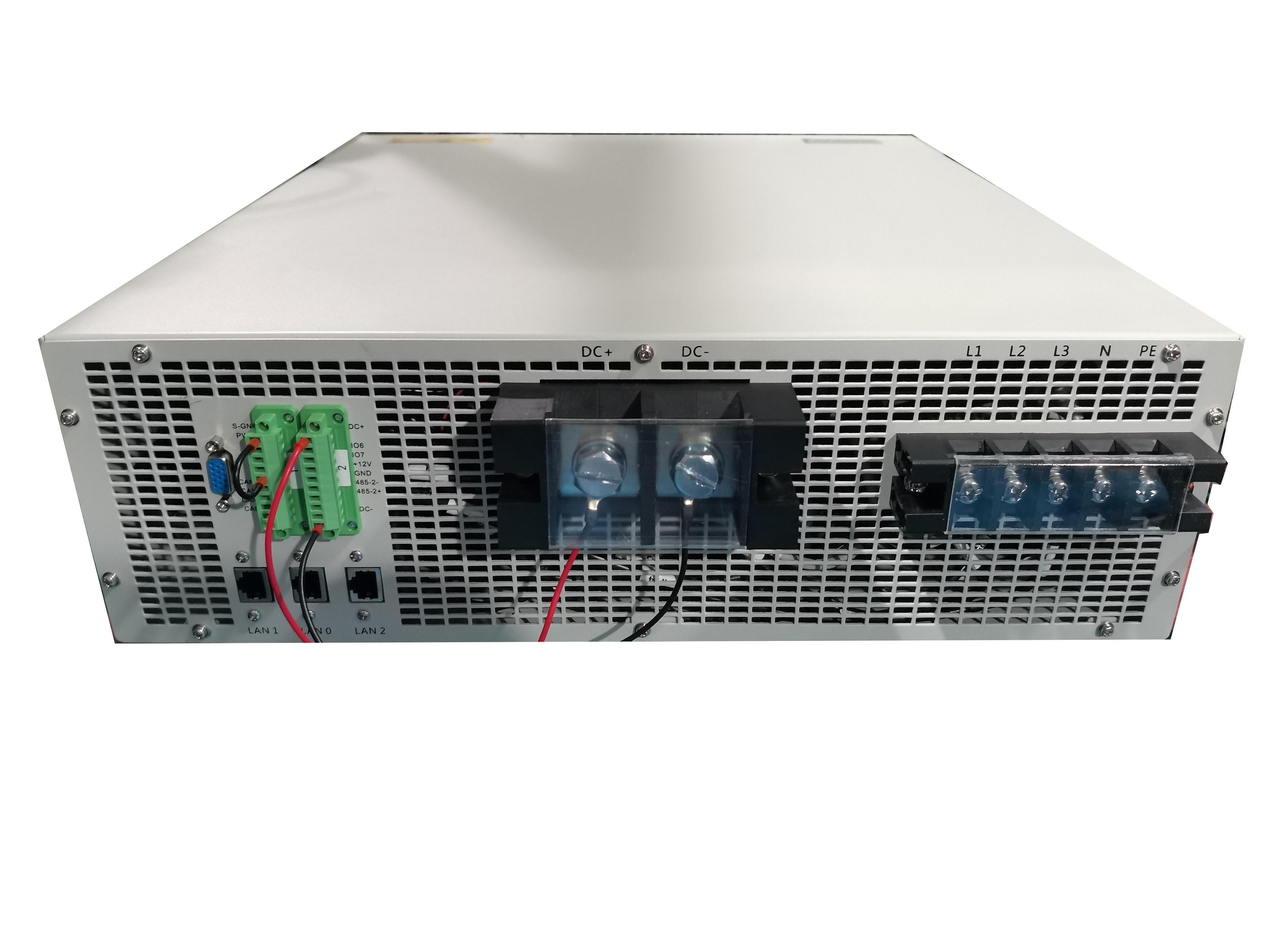

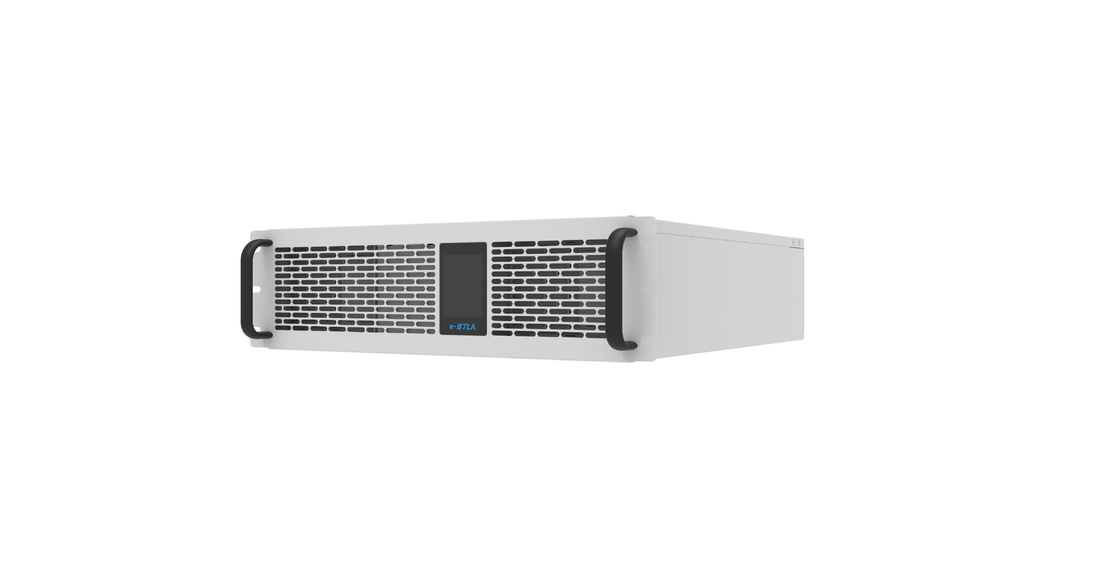

DPS(18kW)High Frequency Isolated AC/DC Bidirectional Converter Module For Battery Testing Equipment

Using the latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment. Intelligent forward and backward operation, seamless switching, can meet the occasion of two-way energy transformation, and has high frequency isolation function, higher security. At the same time, the product is equipped with on-grid/off-grid switching function, and the switching time is not more than 10ms, which can be applied in more occasions.



Technical parameter

AC side parameters

  • Rated Input Power
wiringThree-phase five wire systemThree-phase five wire system
voltage range380Vac±15%380Vac±15%
Rated frequency and range45~65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range±1

DC side parameters

  • Rated voltage
  • Rated current
Voltage range2.5Vdc-100Vdc
Current range±300A
Voltage accuracy0.1% F.S
  • Current accuracy
0.1% F.S
Voltage limitingYes
  • Current limiting

Basic Characteristics

AC/DC starting functionYes
Switching time forward and backward≤10ms
  • Peak efficiency
  • Weight(kg)

Environmental Conditions

  • Operating Temperature Range
  • Working humidity range
%RH<+95Relative humidity, non-condensing
Storage temperature°C-40 ~ +55
  • Storage humidity
%RH0 ~ +95Relative humidity, non-condensing
  • Cooling mode
  • Force-air cooling
  • Altitude
  • Protection grade
  • Noise


Communication mode-
  • CAN,RS485,Ethernet,dry contact
Report signal-Various protection signals, voltage and current signals
Receipt signal-On off signal
