30KW Bidirectional AC To DC Converter For Battery Test Equipment And Energy Storage System

Basic Information
Place of Origin: China
Brand Name: ANE
Certification: CE,IEC 50549
Model Number: PMA030-A011-H
Minimum Order Quantity: 10
Price: FOB: 2,000 USD~5,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Rated Power: 30kW Maximum Power: 33kW
Rated Voltage: AC380V Voltage Range: AC380V±15%
Voltage Range(BAT+/-): DC50V~DC950V Voltage Range (DC+/-): DC680V~ DC1000V
Rated Voltage(BAT+/-): DC300V Isolation Transformer: Support
AC And DC Starting Capability: Support Forward And Reverse Switching Time: <10ms
Efficiency: ≥95% Mean Time Between Failure (MTBF): >100000 Hours
Operating Temperature: -20℃~+45℃(above +50℃ Power Derating) Working Humidity: ≤95%RH,no Condensation
Storage Temperature: -40℃~+55℃ Cooling Method: Intelligent Forced Air Cooling
Altitude: <3000m Communication: RS485,CAN, Ethernet, Dry Contact
Protection Level: IP20 Noise: <70dB
Size (H*W*D): 129*436*470mm

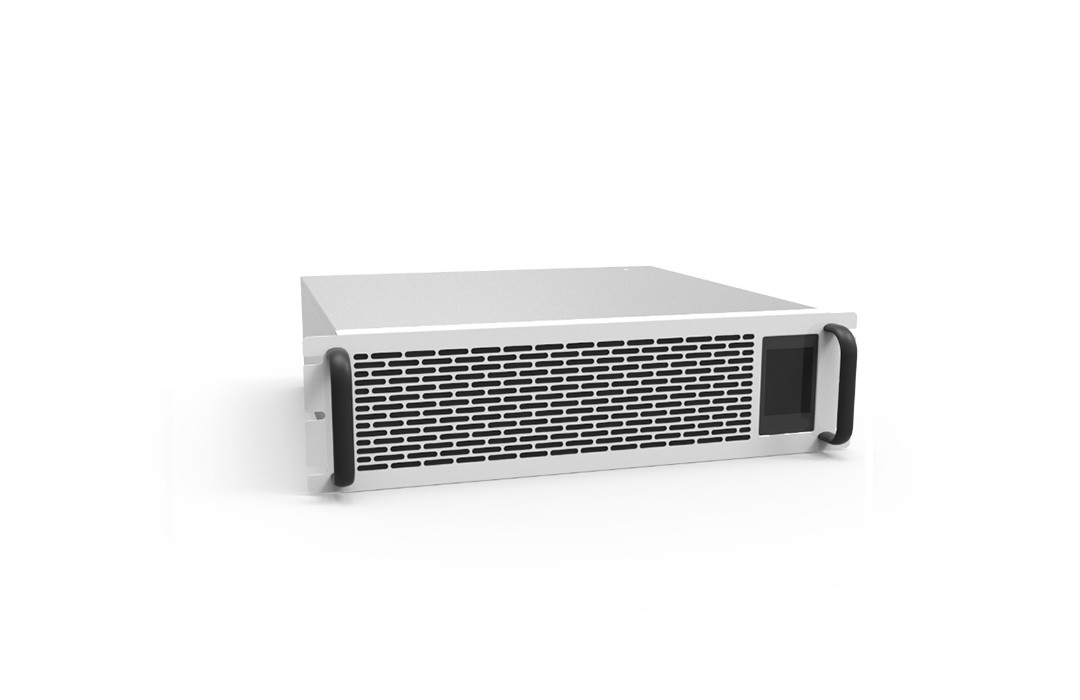

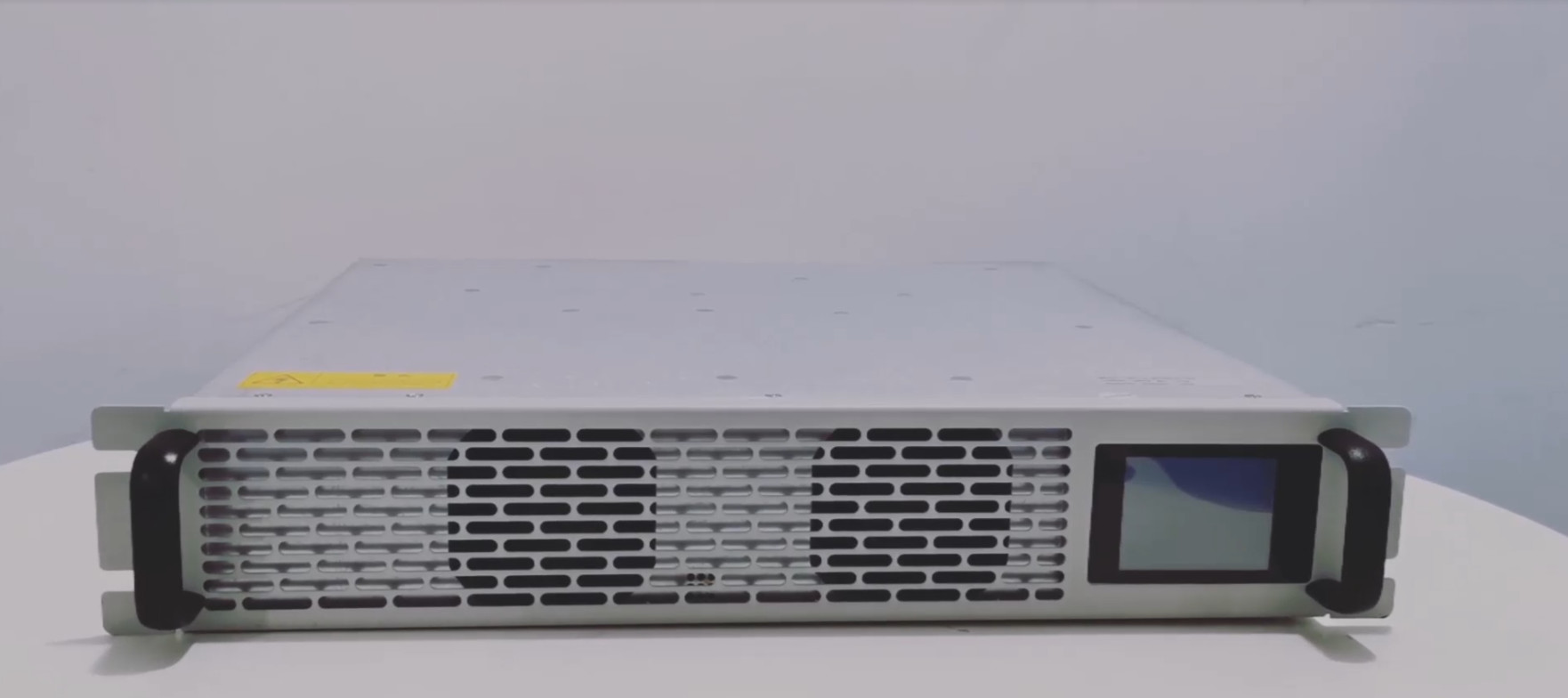

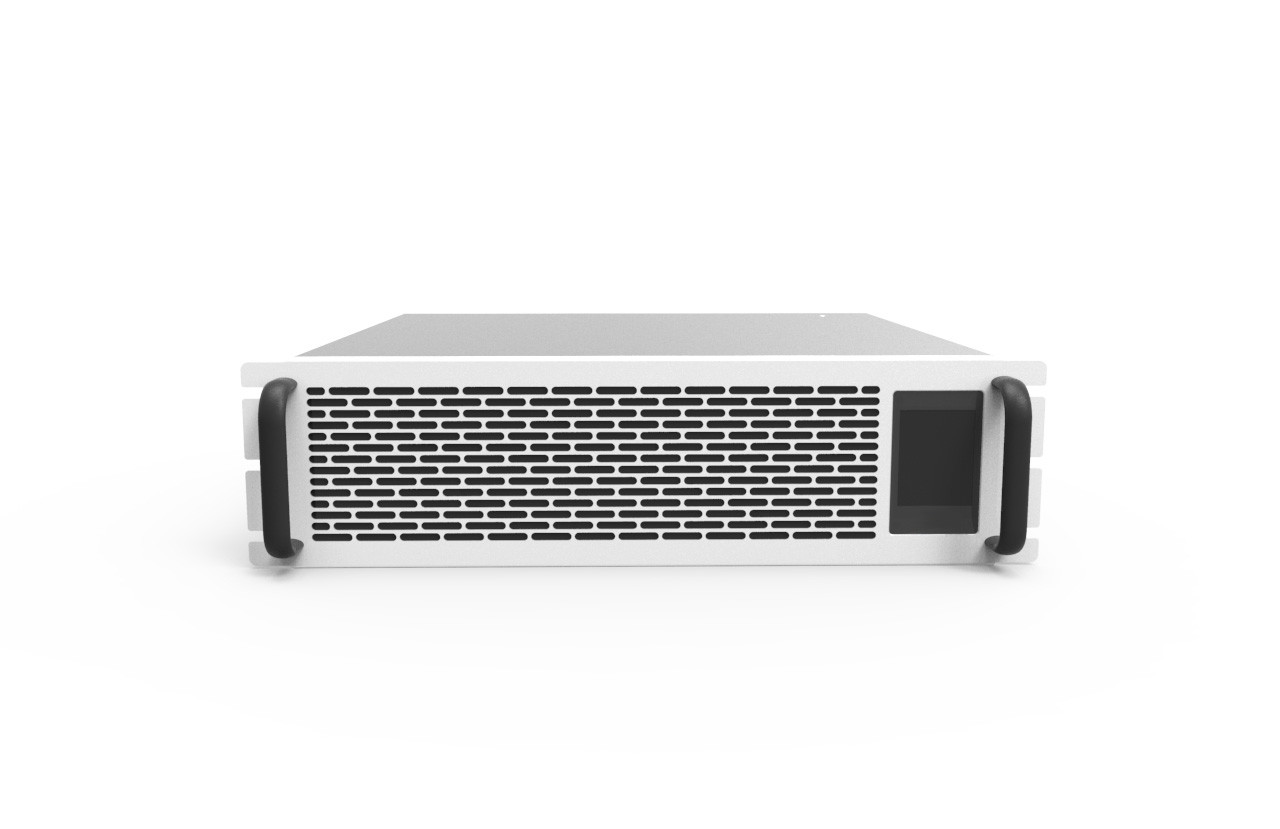

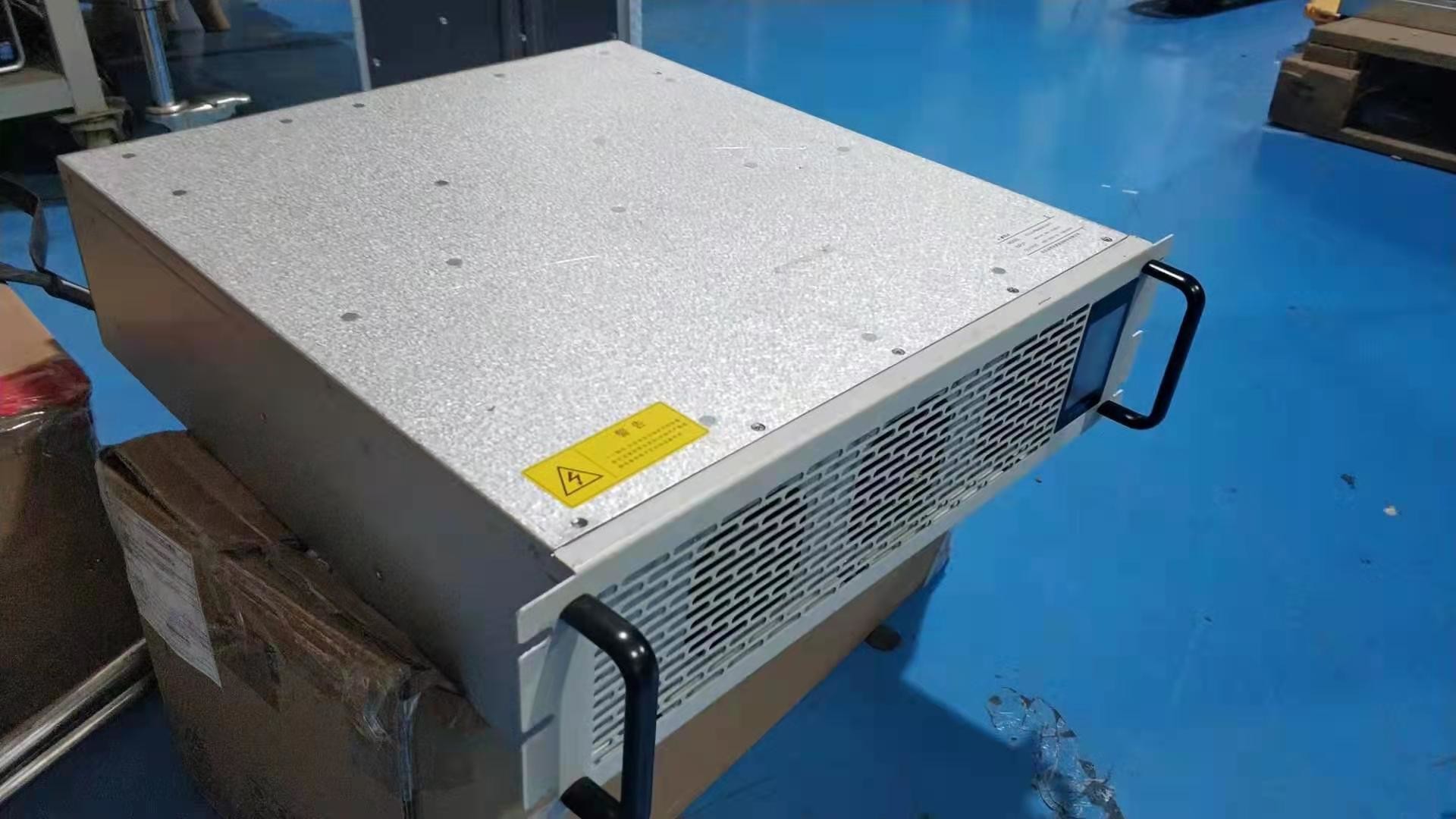

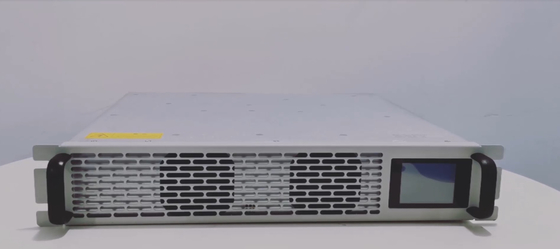

30 KW Bidirectional AC / DC Power Module For Microgrid and Energy storage System.



ANE 30kW module is a bidirectional AC-DC module specially developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process. Compatible with almost all energy storage equipment charging and discharging requirements. This module has the advantages of ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.


Technical parameter

Model PMA030-A011-H
AC side grid connection parameters
Rated voltage AC380V
Rated power 30kW
Maximum power 33kW
Voltage range AC380V±15%
Current range ±45A
Rated frequency 50Hz/60Hz
Power factor adjustable range -0.99~0.99
Current DC component ≤0.5%
Harmonic content THDi ≤3%
AC side off-grid parameters
Rated voltage AC380V
Rated frequency 50Hz/60Hz
Stabilized voltage precision ≤1%
Voltage settable range AC380V±15%
Power factor >0.99
Harmonic content THDu ≤3%
Output voltage DC component ≤0.5%
Voltage transition range ≤1%,Load changed from 20% to 100%
Unbalanced load capacity 100%
Three-phase unbalance ≤2%,Short time no more than 4%
DC side parameters
Voltage range(BAT+/-) DC50V~DC950V
Voltage range (DC+/-) DC680V~ DC1000V
Rated voltage(BAT+/-) DC300V
Rated current (BAT+/-) 100A
Current range ±100A
Voltage error ±1%
Current error ±1%
Voltage limiting Support
Current limiting Support
Rated power 30kW
Maximum power 33kW
Basic characteristics
AC and DC starting capability Support
Forward and reverse switching time <10ms
effectiveness ≥95%
Standby power consumption <30W
Mean Time Between Failure (MTBF) >100000 hours
Operating temperature -20℃~+45℃(above +45℃ power derating)
Working humidity ≤95%RH,no condensation
storage temperature -40℃~+55℃
Storage humidity 0 ~ 95%RH
Cooling method Forced air cooling
Altitude 3000m
Communication RS485,CAN, Ethernet: Dry contact.
Protection level IP20
Noise <70dB
Weight 26kg
Size (H*W*D) 129*436*470mm
