| Place of Origin: | China |
|---|---|
| Brand Name: | ANE |
| Model Number: | BTLA-PMA060-A021-HL |
| Minimum Order Quantity: | 10 |
| Price: | FOB: 2,000 USD~5,000 USD |
| Packaging Details: | Carton box |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, |
| Supply Ability: | 20000 Per month |
| Rated Power: | 60kW | Rated Frequency: | 50Hz/60Hz |
|---|---|---|---|
| Rated Voltage: | AC380V | Voltage Range: | AC380V±15% |
| Voltage Range （DC+/-）: | 50Vdc～950Vdc | Current Range: | ±140A |
| Voltage Limiting: | Support | Current Limiting: | Support |
| Forward And Reverse Switching Time: | <10ms | Efficiency: | ≥97% |
| Mean Time Between Failure (MTBF): | ＞100000 Hours | Operating Temperature: | -20℃～+45℃（above +50℃ Power Derating） |
| Working Humidity: | ≤95%RH，no Condensation | Storage Temperature: | -40℃～+55℃ |
| Cooling Method: | Intelligent Forced Air Cooling | Communication: | RS485，CAN, Ethernet, Dry Contact |
| Noise: | ＜70dB | Size (H*W*D): | 129*436*470mm |

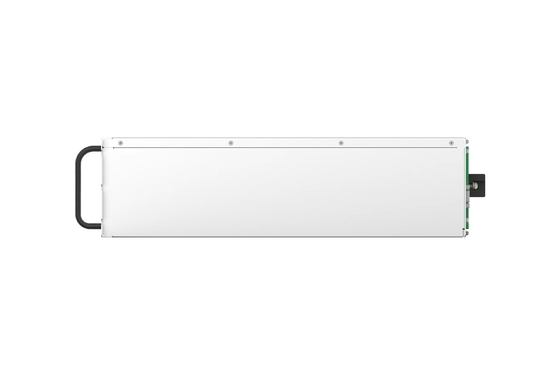

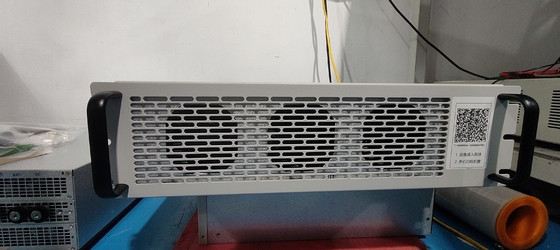

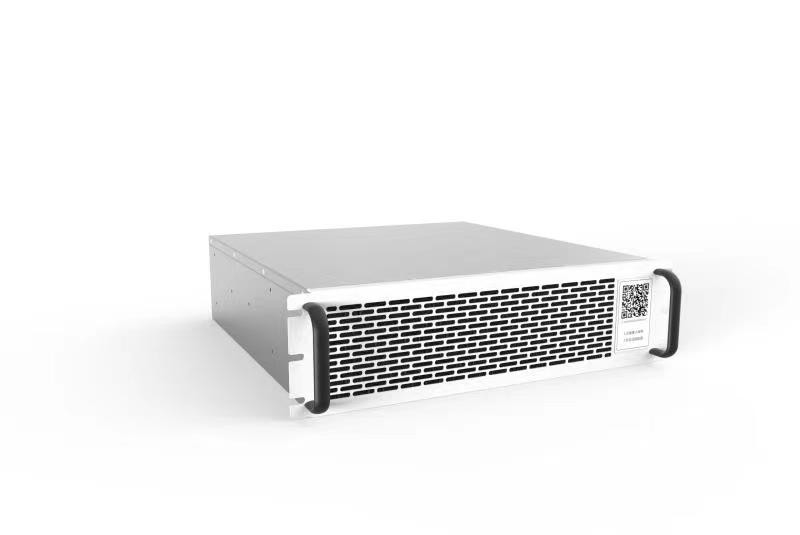

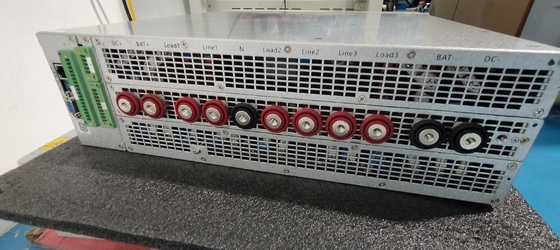

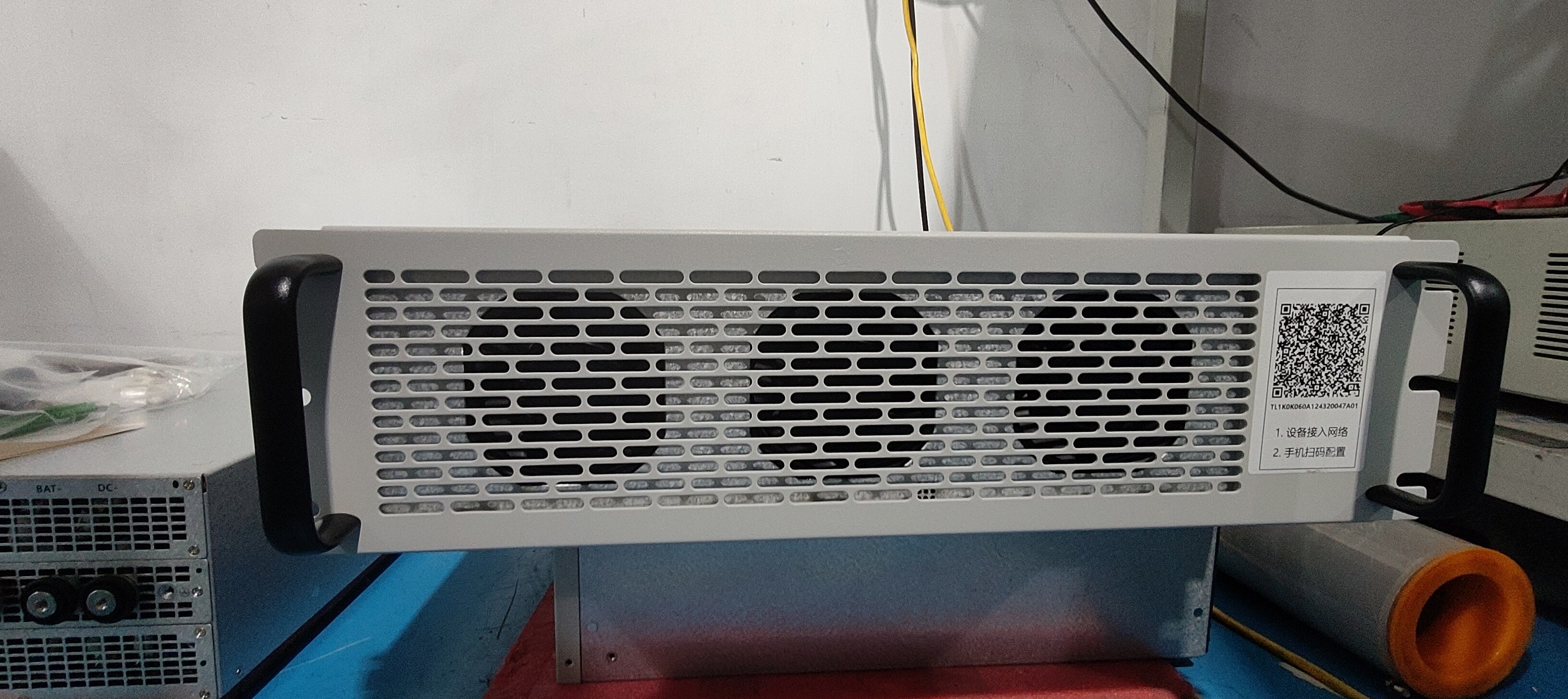

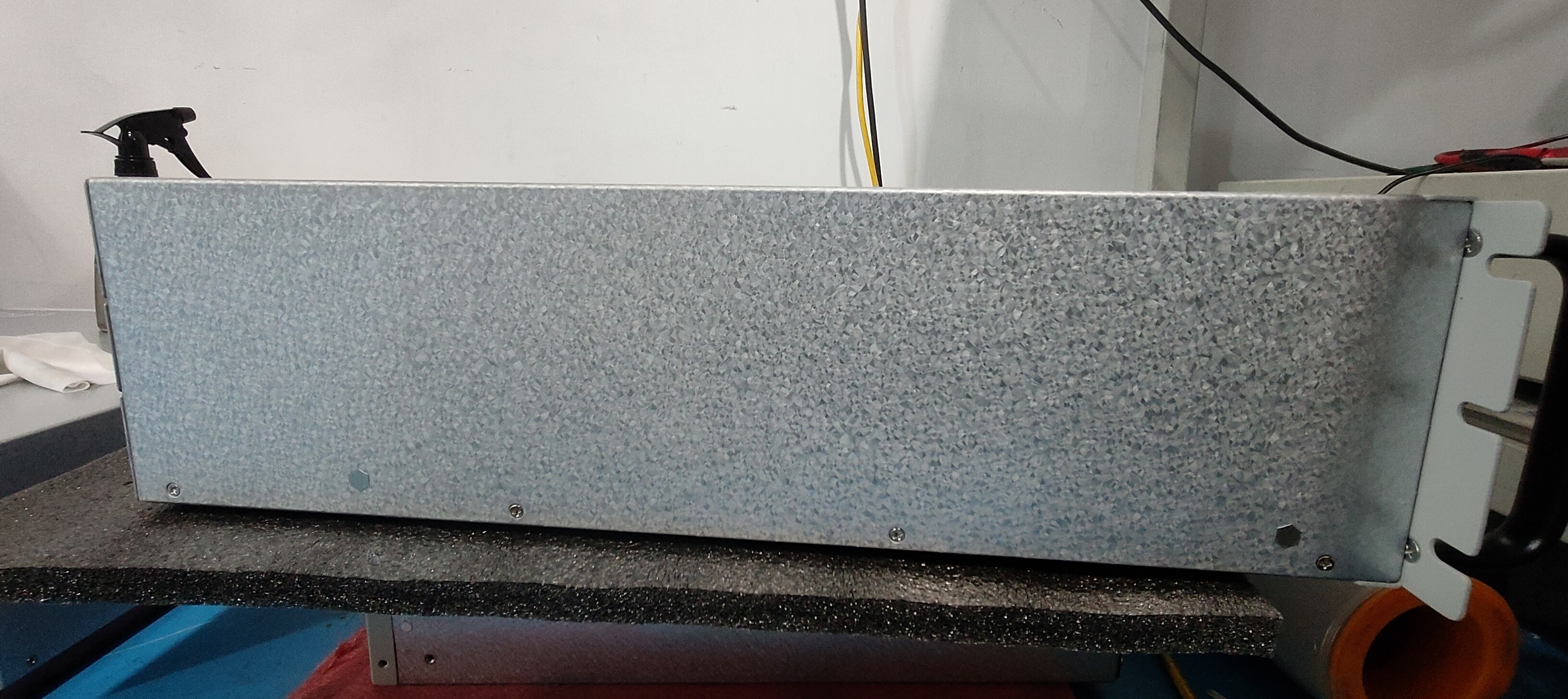

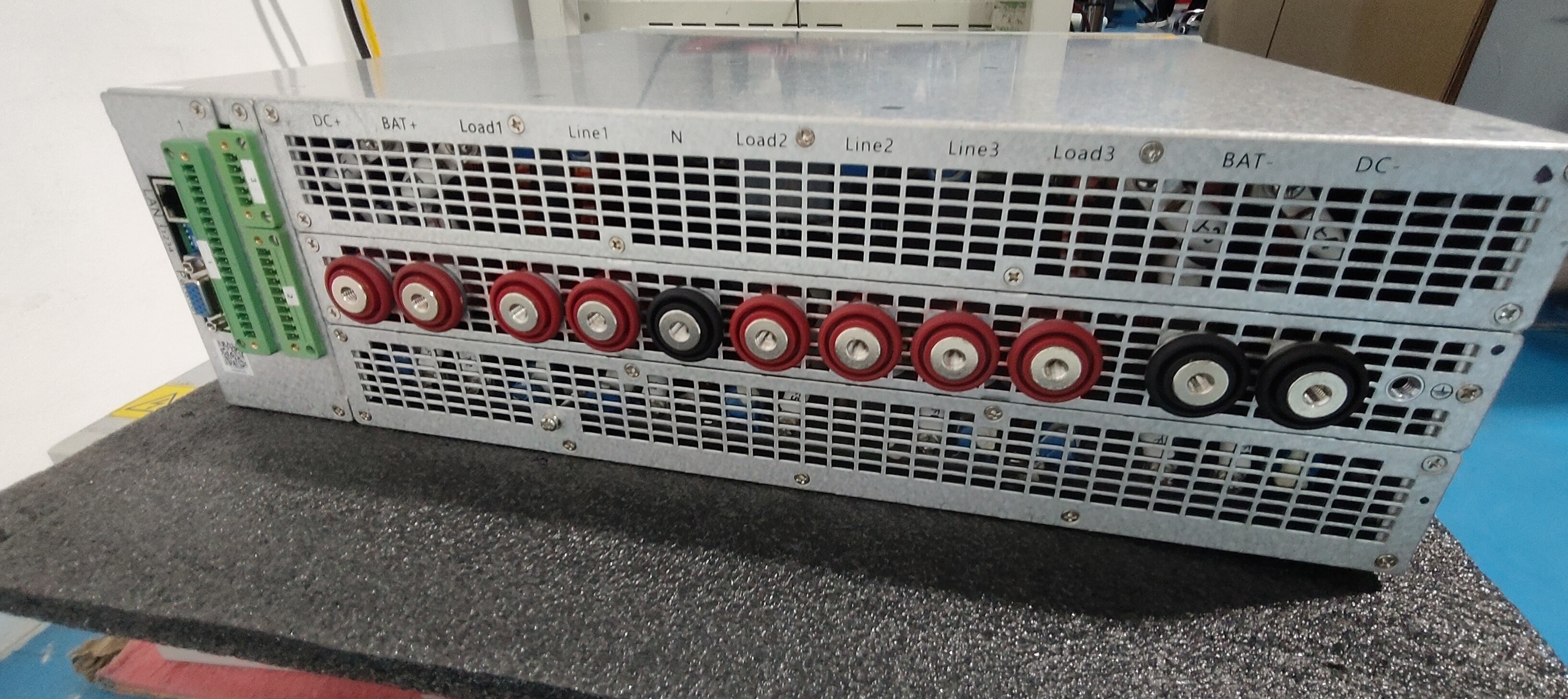

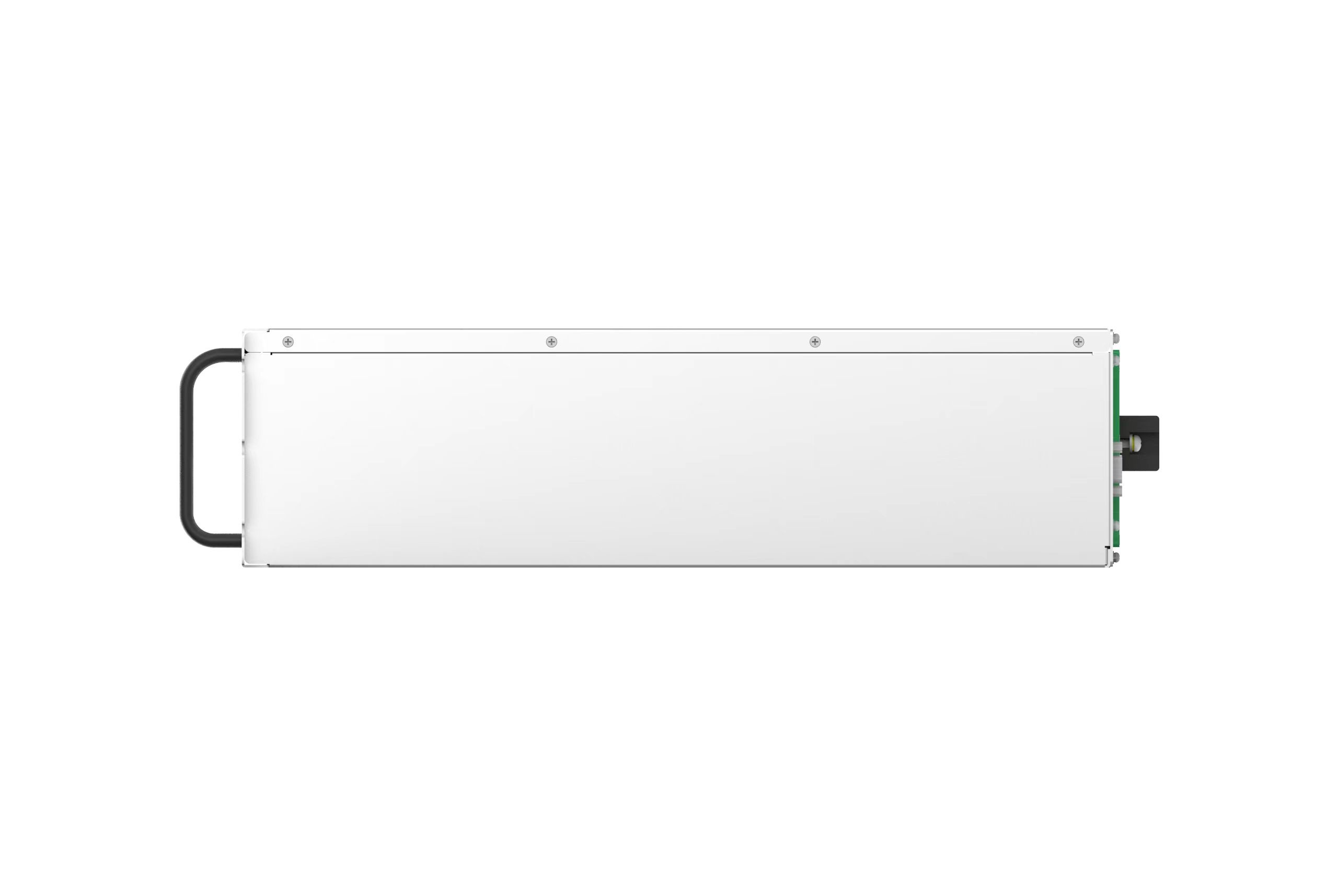

This energy storage bidirectional AC/DC converter adopts modular design, advanced control algorithm to realize multi-machine parallel and has reactive power compensation function. The series of products have both local monitoring and EMS system remote scheduling functions, with excellent load adaptability and power grid adaptability, at the same time, independent air duct design makes it can effectively cope with a variety of complex application environment, the system is safer, reliable, economic, environmental adaptability.
Features
High efficiency
Safety
Convenient
Technical parameter
| Model | BTLA-PMA060-A021-HL |
| AC side on-grid parameters | |
| Wiring system | Three phase five wire system |
| Rated voltage | AC380V |
| Rated power | 60kW |
| Voltage range | AC380V±15% |
| Current range | ±91A |
| Rated frequency | 50Hz/60Hz |
| Frequency range | 50/60Hz±5Hz |
| PF | ±1 |
| Harmonic content THDi | ≤3% |
| AC side off-grid parameters | |
| Rated voltage | 380Vac |
| Voltage range | 380Vac±15% |
| Voltage accuracy | ≤1% |
| Output frequency | 50/60Hz±5Hz |
| THDu | ≤3% |
| DC side parameter | |
| voltage range | 50Vdc～950Vdc |
| Current range | ±140A |
| Voltage error | ≤1% |
| Stabilized voltage precision | ≤1% |
| Current error | ≤1% |
| Stabilized current precision | ≤1% |
| Basic characteristics | |
| Off-grid/grid-connected switch | Built-in |
| AC and DC starting capability | Support |
| Forward and reverse switching time | <10ms |
| Peak efficiency | 96.5% |
| Overload capability | 1.1 times ≥ 10min, 1.2 times ≥ 1min |
| Off-grid/grid-connected switching time | <10ms |
| Operating temperature | -20℃～+45℃(above +45℃ power derating) |
| Working humidity | ≤95%RH,no condensation |
| storage temperature | -40℃～+55℃ |
| Storage humidity | 0 ~ 95%RH |
| Cooling method | Intelligent forced air cooling |
| Altitude | 3000m |
| Communication | RS485*1,CAN*2,LAN*1 |
| Island protection | Support |
| Protective characteristic | Multiple safety protection, AC and DC over and under voltage protection, over current protection, short circuit protection, DC reverse protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc. |
| Protection level | IP20 |
| Noise | ＜70dB |
| Weight | 32kg |
| Size ( H*W*D ) 129*443*470mm | |
All performance and parameters shall be subject to the latest confirmation of our technical department.
