30 KW All In One Integrated Generation System Modularized Design For Micro Grid

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: TISP030NL1K
Minimum Order Quantity: 1
Price: FOB: 20,000 USD~35,000 USD
Packaging Details: wooden box
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 50 per month
Photovoltaic Rated Input Power: 3*10 KW Max. DC Current: 950V
MPPT Voltage Range: DC200V~DC950V Full Load MPPT Voltage Range: DC250V~DC950V
MPPT Efficiency: 98.5% Max. Input Current: 3*40A
MPPT Paths: 3 Battery Rated Power: 30kW
Battery Max. Current: 120A Port Voltage Range: DC200V~DC950V
Constant Power Voltage Range: DC250V~DC1000V AC Side On Grid Rated Power: 30kW
AC Side On Grid Rated Voltage: AC380V/AV400V/AC415V(Optional) Voltage Range: AC400V±20%
Rated Frequency: 50Hz/60Hz(Optional) Frequency Range: 45Hz~55Hz/55Hz~65Hz
Current Harmonics: <=3% Max. Current: ±45A
Power Factors: ±1 Feed Current: <=0.5%
AC Side Off Grid Rated Voltage: AC380V/AV400V/AC415V(Optional) AC Side Off Grid Rated Frequency: 50Hz/60Hz(Optional)
Three Phase Voltage Unbalance: <=2%, Not More Than 4% For A Short Time Unbalanced Three Phase Load Capacity: 100%
System Max. Efficiency: >=96% Overload Capacity: 1.1 Times 10 Min; 1.2 Times 1 Min
Display: LCD Touching Screen (8") Working Temperature: -25°C~+55°C (Power Derating When Temperature Higher Than 50°C)
Storage Temperature: -40°C~75°C Working Humidity: <=95%RH, No Condensation
Altitude: <=3000m Noise Level: <=65dB
IP Grade: IP20(indoor Type)/IP54(outdoor Type) Communication Interface: Ethernet, 4G
Service Life: More Than 10 Years Installing: Pedestal Installing
Cooling: Forced Air Cooling With Intelligent Speed Adjustment Wright: <=400kG
Size: 600mm*800mm*1800mm(indoor); 900mm*805mm*2050mm(outdoor)
High Light:

integrated power systems


integrated energy systems



Product Introduction

The integrated generator system integrates the photovoltaic, diesel generator and energy storage together, which can convert the DC and AC during the practical application, it can parallel operate with diesel generator and connected, with multiple functions of dynamic adjustable working modes, seamless switching on grid and off grid system, photovoltaic MPPT tracking and virtual machine resynchronization, also with the data interaction and system management function, widely applied in power supply in area without power system, grid generation and emergency power supply scenarios.

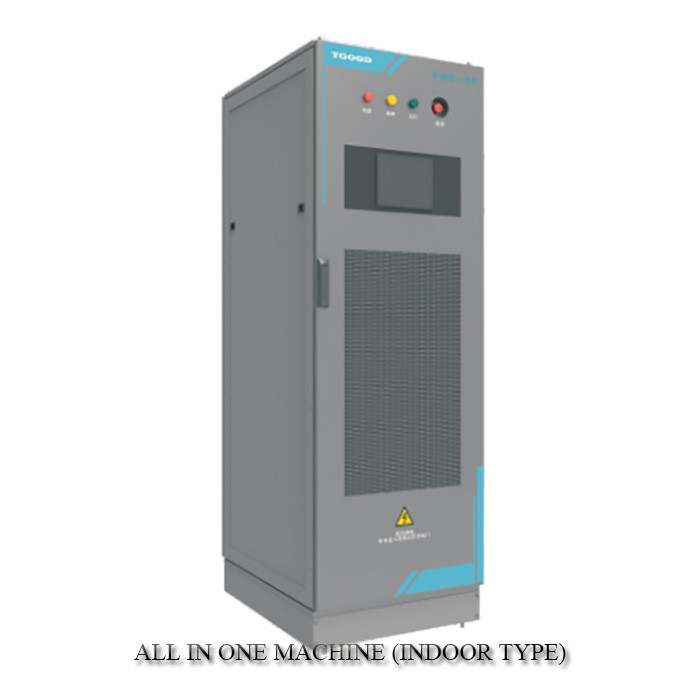

30 KW All In One Integrated Generation System Modularized Design For Micro Grid 0

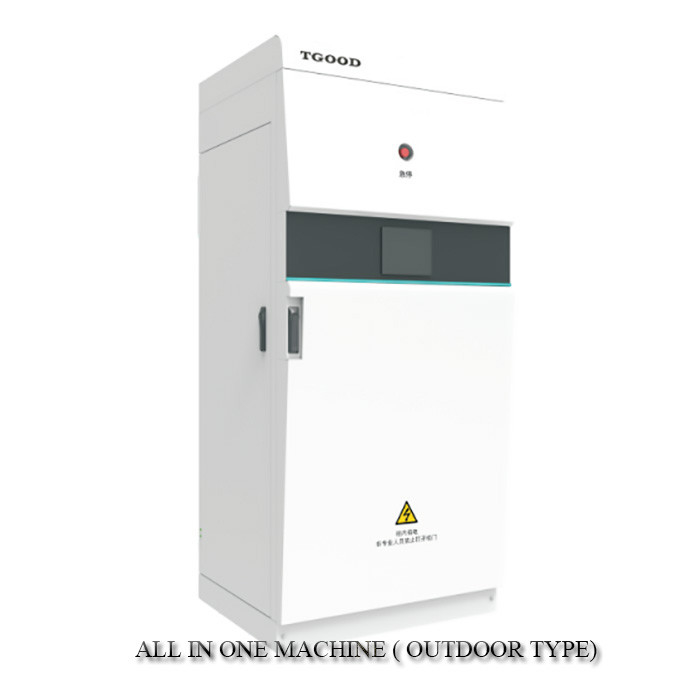

30 KW All In One Integrated Generation System Modularized Design For Micro Grid 1
