Electric Vehicle Energy Storage And Charging System 60 KW / 90 KW All-In-One

Basic Information
Place of Origin: China
Brand Name: ANE
Model Number: TICD15/0.4/TICD30/0.4
Minimum Order Quantity: 1
Price: FOB: 20,000 USD~35,000 USD
Packaging Details: wooden box
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 50 per month
Protection Level: IP54 Noise: ≤ 70dB
Charging Start Mode: Swipe, Mobile App, Local Boot In And Out Line: Lower In Line, Lower Out Line
Energy Storage Startup Mode: Cloud/local Boot Operating Temperature: -20℃~+55℃(+45℃~+55℃power Derating )
Relative Humidity: ≤95%RH, No Condensation Size (W*D*H): 2300mm*1000mm*2200mm
High Light:

microgrid power system

,

smart micro grid system

60 KW / 90 KW All-In-One Energy Storage And Charging System For Electric Vehicle

60 kW/90 kW All-in-one energy storage and charging system is an outdoor energy storage charging equipment, which integrates intelligent energy storage and electric vehicle charging. Flexible intelligent power distribution is adopted for energy storage and charging to solve the influence of grid power limit. Different power ranging 15kW~30kW input and 60kW~90kW charging output power can be realized according to the number of modules configurations. It can support a maximum of 5 charging terminals to improve the use efficiency of charging and discharging modules and equipment utilization rate.

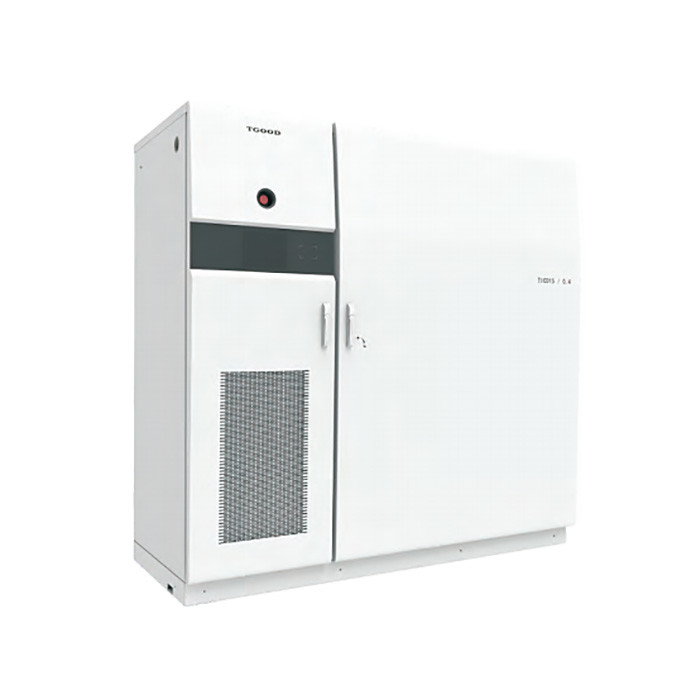

Electric Vehicle Energy Storage And Charging System 60 KW / 90 KW All-In-One 0

Features:



[ Menu selection ]

——Configure AC and DC interfaces to meet the access requirements of AC and DC equipment;

——Storage and charging functional unit design, configuration according to requirements,shorten the customized development cycle.

[ Multi-functional integration ]

——Power capacity-increase design to effectively solve the impact of power limit of power grid in charging station and CMS Flexible charging of electric vehicle , extend the life cycle of battery by 30%;

——Monitoring the running state of the whole machine,control and protect function to ensure the safety of users;

——It supports multiple charging and discharging strategies including taking turns charging, equal charging and intelligent charging,and the charging mode is more flexible.

[ Modular design ]

——With the modular design of storage and charging, the system networking scheme is flexible, convenient for capacity expansion and maintenance;

——Modular compatible design, to achieve the common power level module interchange.

[ Low cost, integrated design ]

——Prefabricated design, small size, small floor space and short construction period;

——High integration of storage and charging, reducing the initial investment cost of multiple equipment;

——No-load power intelligent control, reduce standby loss and reduce operating costs;

——Customized system economic operation strategy, saving overall energy cost.



Technical Parameters:



Model TICD15/0.4 TICD30/0.4
Grid interface
rated power 15kW 30kW
voltage range AC380V ± 15%
Energy storage system
input power 15kW 30kW
Output Power 60kW
Output voltage (battery side) range DC250V~DC750V
Stabilized voltage precision ≤1%
Stabilized current precision ≤1%
Battery system nominal energy 60kWh±5kWh
Battery system maximum output energy 45.6kWh
Charge and discharge depth 80%
Battery system cycle life 0.5C charging, 1C discharge, 80% DOD 3500 times
Replenishment (energy storage charging) efficiency ≥95%
Charging system
Rated power 60kW~90kW
Charging efficiency ≥95%
Output voltage range DC200V~DC750V
Stabilized voltage precision ≤0.5%
Stabilized current precision ≤1%
Charging interface 1
Basic characteristics
Operating temperature -20℃~+55℃(+45℃~+55℃power derating )
Protection level IP54
noise ≤ 70dB
Energy storage startup mode Cloud/local boot
Charging start mode Swipe, mobile app, local boot
Relative humidity 95% RH, no condensation
Altitude 2000m
In and out line Lower in line, lower out line
Size (W*D*H) 2300mm*1000mm*2200mm

All performance and parameters shall be subject to the latest confirmation of our technical department.
