| Place of Origin: | China |
|---|---|
| Brand Name: | EN plus |
| Certification: | CE |
| Model Number: | Rocket FC120 |
| Minimum Order Quantity: | 5 |
| Price: | FOB: 15500~21500 USD |
| Packaging Details: | Wooden box |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 sets per month |
| Input Voltage: | 3-phase+neutral+PE 360～440VAC | Input Current: | 0~94A |
|---|---|---|---|
| Power Factor: | ≥0.99 | Input THDi: | ≤5% |
| Voltage Regulation Accuracy: | ≤±0.5% | Current Regulation Accuracy: | ≤±1% |
| Output Strategy: | Single Output / Dual Outputs | Charging Type: | MODE 4 ; CASE 3 |
| Power Limiting: | Available | Efficiency: | ≥94% |
| IP Level: | IP54 | IK Level: | IK10 |
| Charging Access: | Password（Option)/RFID Card/APP | Screen: | 8" Touchable LCD |
| Standard: | IEC61851-1 / IEC62196-3 | Ambient Temperature: | -25℃~50℃ |
| Relative Humidity: | 5%Rh~95%Rh | Altitude: | ≤2000m |
| Dimensions: | ≤700*500*1700mm | SOC State Display: | Available |
| Communication Protocol: | OCPP1.6J | Cable Length: | 4.5m |
| Material: | Aluminum / UV Resistant Plastic | ||
| High Light: | dc electric car charging stations,fast charge electric car stations |
||
Features
Rocket FC120
High Effi ciency
Intelligent Control
Flexible Option
Secure and Safe

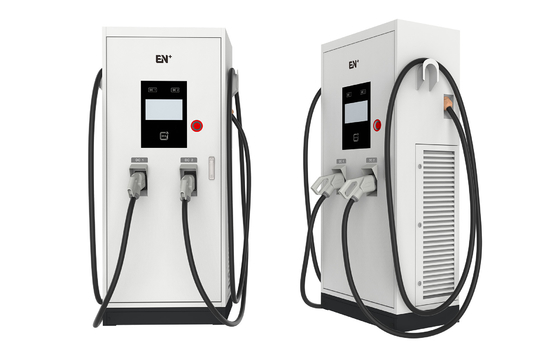

The EN+Rocket FC120 120KW CCS Combo2+CHAdeMO standard EV charging station is especially designed for the EU market, equipped with dual outputs in one CCS2 and one CHAdeMO standard, features with charging two electric vehicles simultaneously, meeting the most common charging requirements for most electric vehicles brands on European countries. The EV charging stations equipped with OCPP1.6 J version software protocols, compatible with the access of main charging platforms in EU countries, the product is module design, easy for the maintenance and repairing, with charging controlling operation, metering, billing together in HMI, easy operation on the touch screen, can be installed both indoor and outdoor, suitable for different application scenarios.
| Rocket FC120 120kW DC CHARGER | ||
| AC INPUT | ||
| Input Voltage | 3-phase+neutral+PE 360～440VAC | |
| Input Current | 0~94A | |
| Frequency | 45～65Hz | |
| Power Factor | ≥0.99 | |
| Input THDi | ≤5% | |
| DC OUTPUT | ||
| Connector | CCS2 | CHAdeMO |
| Output Voltage | 200～750V | 200～500V |
| Max Output Power | 120KW | 60KW |
| Output Current | 0~200A | 0~125A |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Output Strategy | Single Output / Dual Outputs | |
| Charging Type | MODE 4 ; CASE 3 | |
| Power Limiting | Available | |
| Features | ||
| Efficiency | ≥95% | |
| IP Level | IP54 | |
| IK Level | IK8 | |
| Charging Access | Password(Option)/RFID Card/APP | |
| Screen | 10" Touchable LCD | |
| Standard | IEC61851-1 / IEC62196-3 | |
| Ambient Temperature | -25℃~50℃ | |
| Relative Humidity | 5%Rh~95%Rh | |
| Altitude | ≤2000m | |
| Dimensions | ≤700*500*1700mm | |
| Mass | ≤320 kg | |
| SOC State Display | Available | |
| Communication Protocol | OCPP1.6J | |
| Cable Length | 5m | |
| Material | Aluminum / UV resistant plastic | |
| Protection | ||
| Input Over-Voltage Protection | Available | |
| Input Low-Voltage Protection | Available | |
| Output Over-Voltage Protection | Available | |
| Short-Current Protection | Available | |
| Over-Current Protection | Available | |
| Certification | ||
| Certification | CE | |
