| On- Grid/off-grid Switching Time: | <10ms | Communication Interface: | RS485、Ethernet |
|---|---|---|---|
| Communication Protocol: | Modbus_RTU、 IEC104 | Electric Energy Meter: | Equipped |
| Operating Temperature: | - 20℃~+55℃ | Cooling Method: | Forced Air Cooling |
| Protection Level: | IP20 | Size (W*D*H): | 600mm*800mm*1800mm |
| Relative Humidity: | 0~95%，No Condensation | Display: | 8 Inch LCD Touch Screen |
| High Light: | energy storage cabinet,micro grid cabinet system |
||

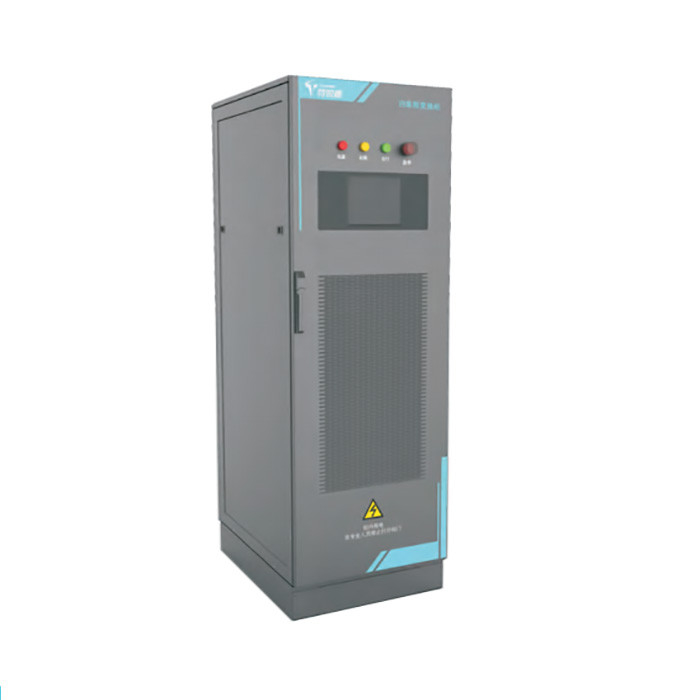

ANE intelligent quick switching cabinet is based on the digital control of intelligent DSP, and adopts the advanced power grid detection and control technology to realize the active and passive detection of power grid anomalies, and quick switch the working mode of energy conversion equipment. The switching time is less than 10ms. With perfect detection and protection control technology, it can close the bypass switch in case of quick switch failure, ensuring uninterrupted power supply for important loads. Based on configurable current protection value, it can realize overload protection, short circuit protection and other protection functions.
Features
On/ off grid switching time is less than 10ms;
Integrated distribution cabinet function to meet the requirements of multi-channel load access;
With perfect protection and detection functions;
With fault recording function, convenient for fault analysis and location;
With remote monitoring, remote control, remote diagnosis and software upgrade functions.
Technical Parameters:
| model | TISG50/0.4 | TISG100/0.4 | TISG150/0.4 | TISG250/0.4 | |
|
Grid rating |
Rated AC current | 100A | 200A | 300A | 380A |
| Voltage range | 380V±15% | ||||
| Frequency range | 50Hz±2.5Hz | ||||
| Switching time | On- grid/off-grid switching time | <10ms | |||
| rating parameters | Rated PCS current | 100A | 200A | 300A | 380A |
| Load rated parameter(Up to 3 channels, can be customized) | Rated load 1 current | 50A | 100A | 200A | 380A |
| Rated load 2 current | 50A | 50A | 100A | 125A | |
| Rated load 3 current | 50A | 50A | 50A | 50A | |
| Communication | Communication interface | RS485,Ethernet | |||
| Communication protocol | Modbus_RTU, IEC104 | ||||
|
Routine data |
Size (W*D*H) | 600mm*1800mm*800mm | |||
| Electric energy meter | equipped | ||||
| weight | 200kg | 250kg | 300kg | 350kg | |
| Isolation protection | Stepwise voltage and frequency protection are set at fixed value. If the protection is exceeded, the grid-connected operation will be terminated, and switch to off-grid operation with PCS cooperation | ||||
| Installation method | Independent cabinet | ||||
| Operating temperature range | - 20℃~+55℃ | ||||
| cooling method | Forced air cooling | ||||
| Protection level | IP20 | ||||
| Relative humidity | 0~95%,No condensation | ||||
| Display | 8 inch LCD Touch screen | ||||
| Connection mode | Three phase five wire system(L1+L2+L3+N+PE) | ||||
