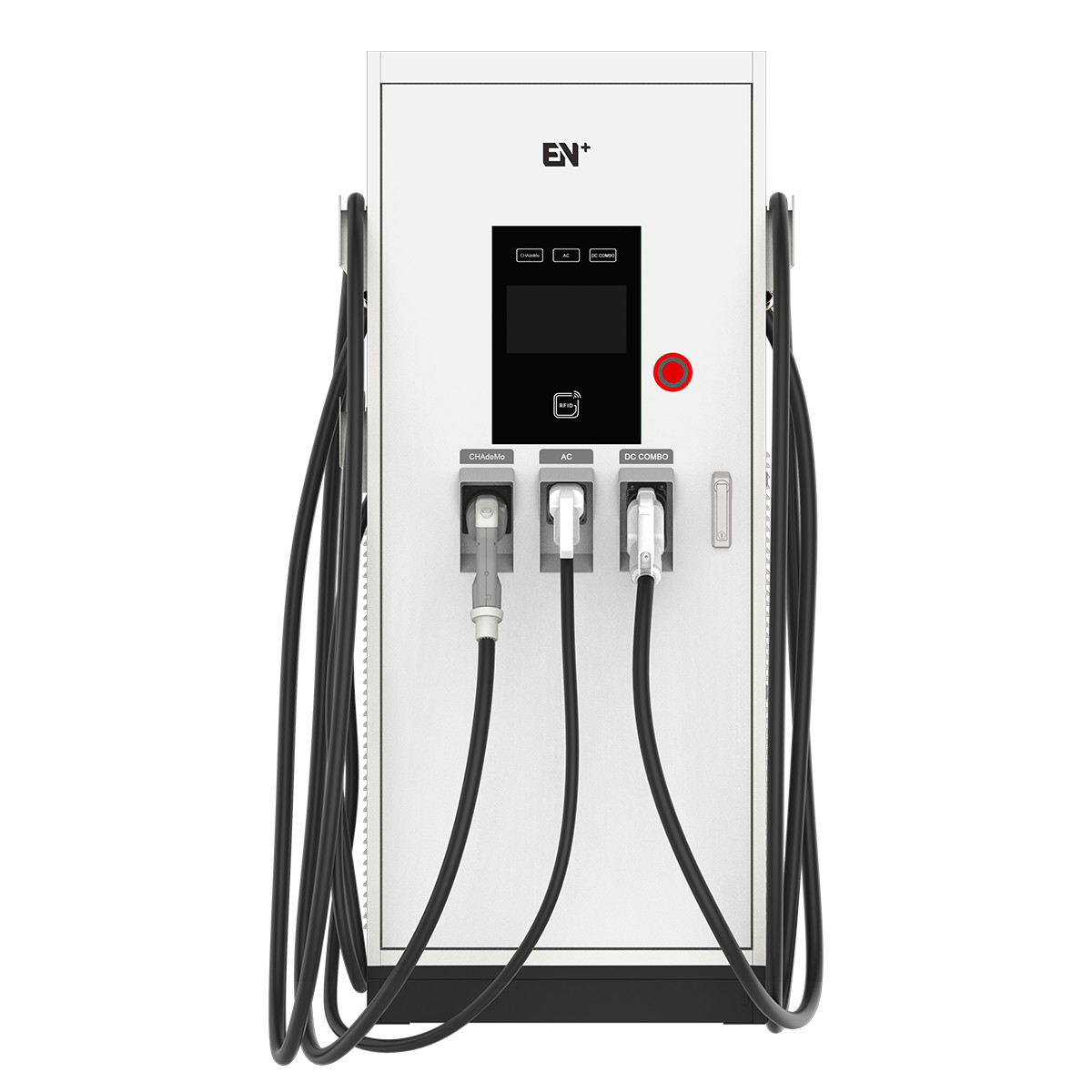

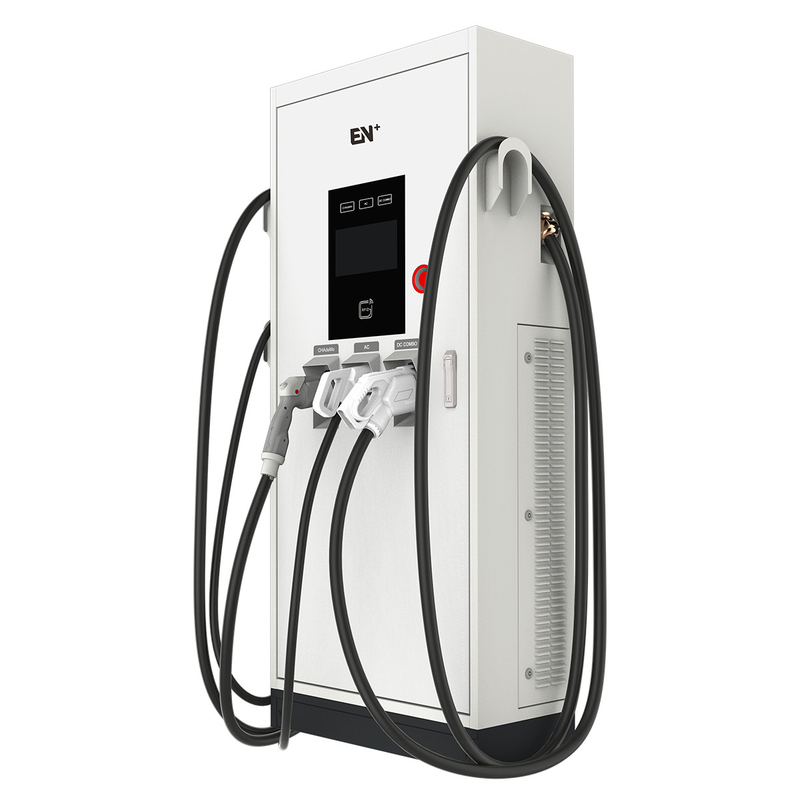

60KW AC DC Three Connectors Charging Station / EV DC Fast Charger For EU Market

Product Description:

DC 60kW+ AC 43kW Fast Charger meets the European charging standards for new energy electric vehicles. Power control, charging management, network communication and other customized functions, all in one device.

The entire charging process is under intelligent control, offering 150~500V output voltage range. CCS2 single gun charging offers super fast charging for one electric vehicle. CCS 2 dual guns charging allows the charging of two electric vehicles simultaneously with equal power distribution.

Key Features:

Power: 60kw

Output Current: Max.200A

Output Voltage: 200~1000Vdc

One AC Type 2 charging connector

One CCS2 charging connector, one CHAdeMO connector

Self-developed power module

Compliant with OCPP 1.6 ( JSON)

RFID function

Protection Grade: IP54

Warranty: 2 years

Features

Turbo Series Charging Station

AC & DC Integration

One charger with three outputs, simultaneously charging
Two DC connectors: CCS1/CCS2 and CHAdeMO, with output up to 60KW
One AC connector: Type 1/2, with output up to 43KW

Intelligent Control

Ethernet/4G/WiFi communication all supported
OCPP communication protocol with the CMS
Intelligent operation by App and cashless payment

Flexible Option

App operation or RFID authentication or plug and play
Optional POS terminal for contactless credit card payment
High protection grade as IP54, with IP65 optional

Secure and Safe

Type A RCD for residual current protection
MID certified AC meter and PTB certified DC meter

ISO15118 prepared for advanced feature of Plug&Charge

Datasheet	Model	DC060K-E2
Input	Power Supply	3P+N+PE
	Rated Voltage	400V AC
	Rated Current	250A
	Frequency	50/60Hz
Output	Output Voltage	200~500V DC	400V AC	200~1000V DC
	Maximum Current	125A	63A	200A
	Rated Power	60KW	43KW	60KW
User Interface	Charge Connector	CHAdeMO	Type 2 cable	CCS2
	Cable Length	5M	5M	5M
	Enclosure	Galvanized steel
	LED Indicator	Green/Yellow/Red
	LCD Display	10'' color touch screen
	RFID Reader	Mifare ISO/IEC 14443 A
	Start Mode	Plug&Play/RFID card/App
	Emergency Stop	Yes
	POS Terminal	Optional
Communication	WiFi	Yes
	Ethernet	Yes
	3G/4G	Optional
	OCPP	OCPP 1.6 JSON (OCPP 2.0 optional)
Electrical Parameter	Efficiency	≥95%
	Power Factor	≥0.99 @ 50%~100% loading
	THD	≤5% @ 50%~100% loading
	Ripple Factor	≤±0.5%
Sefety	Energy Meter	PTB certified	MID certified	PTB certified
	RCD	Type A
	Ingress Protection	IP54
	Impact Protection	IK08
	Electrical Protection	Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
	Certification	CE
	Certification Standard	EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
	Warranty	2 Years
Environment	Installation	Floor-stand
	Cooling Method	Fan cooling
	Noise	≤60dB
	Work Temperature	-30℃~+50℃
	Work Humidity	5%~95%
	Work Altitude	<2000M
Package	Product Dimension	7504001830MM (WDH)
	Package Dimension	10206162030MM (LWH)
	Net Weight	185KG
	Gross Weight	225KG
	External Package	Wood case

Tag:

Place of Origin:	China
Brand Name:	EN plus
Certification:	CE
Model Number:	DC060K-E2

Minimum Order Quantity:	5
Price:	FOB: 12500~15500 USD
Packaging Details:	Wooden box
Delivery Time:	45 work days
Payment Terms:	T/T, L/C
Supply Ability:	500 sets per month

Input Voltage:	400V AC	Input Current:	0~250A
Efficiency:	≥95%	IP Level:	IP54
IK Level:	IK08	Start Mode:	Plug&Play/RFID Card/App
Screen:	10'' Color Touch Screen	Standard:	IEC61851-1 / IEC62196-3
Ambient Temperature:	-30℃~50℃	Communication Protocol:	OCPP1.6J
Color:	White	Weight:	185KG
Highlight:	ev bus charging station , ev dc fast charger
