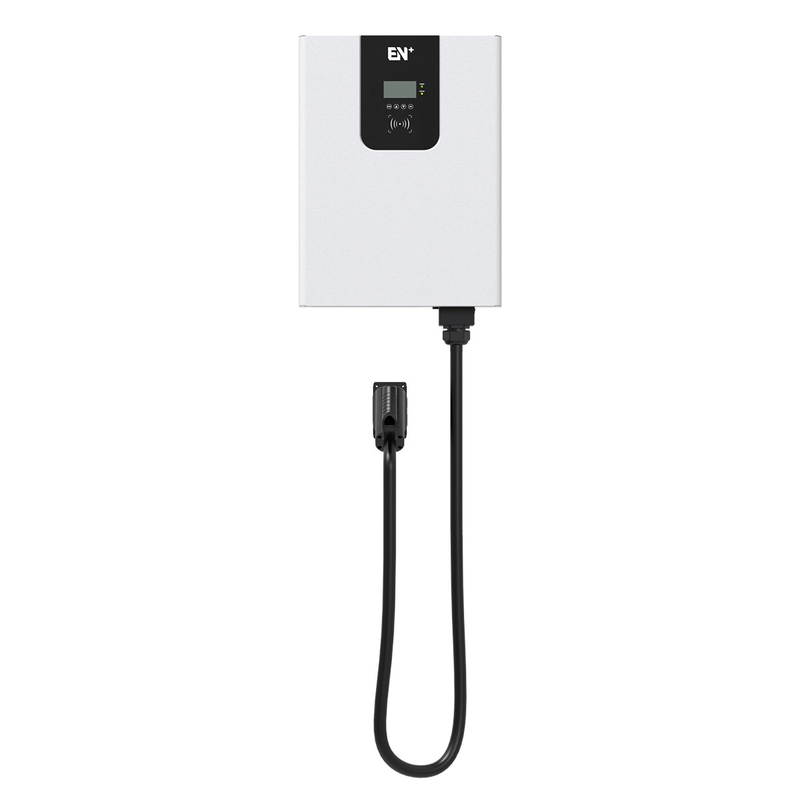

750V Wall-mount 20kW DC Charging Station

750V Wall-mount 20kW DC Charging Station
750V Wall-mount 20kW DC Charging Station 750V Wall-mount 20kW DC Charging Station 750V Wall-mount 20kW DC Charging Station 750V Wall-mount 20kW DC Charging Station 750V Wall-mount 20kW DC Charging Station
Basic Information
Place of Origin: China
Brand Name: EN plus
Model Number: DC020K-FE-00
Minimum Order Quantity: 5
Price: FOB: 1300~3500 USD
Packaging Details: Wooden box
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Contact Now
Input Voltage: 400V AC Input Current: 50A
Efficiency: ≥94% IP Level: IP54
IK Level: IK08 Start Mode: Plug&Play/RFID Card
Screen: 2.7'' Black & White Screen Standard: IEC61851-1 / IEC62196-3
Ambient Temperature: -30℃~50℃ Cable Length: 7m
Noise: ≤60dB
Highlight:

ev bus charging station

,

ev dc fast charger

750V Wall-mount 20kW DC Charging Station

750V Wall-mount 20kW DC Charging Station 0

Short Description:

Wall-mount DC charger is designed for private use, providing fast charging for electric vehicle. With EV battery capacity increasing, DC charging will emerge in more and more locations.

Using self-developed 20KW power module, the charger design is highly integrated and compact, with protection grade up to IP54, which is suitable for both indoor and outdoor applications.

Equipped with a CCS2 charging gun,its easy operation as plug-and-play makes it an ideal solution for the fleet or parking facilities.



Key Features:

Power: 20kw

Output Current: Max.50A

Output Voltage:150*500Vdc

One CCS2 charging gun

Self-developed power module

Compliant with OCPP 1.6 ( JSON)

Plug-and-play

RFID function

Protection Grade: IP54

Warranty: 2 years



Product Features



Professional cooling design

Bell-mouth direct ventilation solution, ensure the ventilation for the modules, control the internal temperature, enhance the efficiency and stability.

Core modules

Independently developed power module with our own patent, approved by 3rd party certification body

Stable and Reliable

Use industry's top components and high-efficiency module to ensure the hardware stability and reliability.

Friendly operation

Full LCD touch screen display of working status, charging progress, card balance and other operation information.

Initiative protection

BMS depth interaction, charger active participation in the monitoring during the charging process, to ensure a safe charging.

Datasheet Model DC020K-FE-00
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 50A
Frequency 50/60Hz
Output Output Voltage 200~750V DC
Maximum Current 33A
Rated Power 20KW
User Interface Charge Connector CCS2 cable
Cable Length 7M
Enclosure Galvanized steel
LED Indicator Green/Red
LCD Display 2.7'' black & white screen
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Play/RFID card
Emergency Stop Yes
Sefety Energy Meter No
RCD No
Ingress Protection IP54
Impact Protection IK08
Electrical Protection Over current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Certification CE
Certification Standard EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Warranty 2 Years
Environment Installation Wall-mount
Cooling Method Fan cooling
Noise ≤60dB
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000M
Package Product Dimension 566*426*163MM (H*W*D)
Package Dimension 730*500*420MM (L*W*H)
Net Weight 30KG
Gross Weight 34KG
External Package Carton

Starting Charging Your Car


750V Wall-mount 20kW DC Charging Station 1
750V Wall-mount 20kW DC Charging Station 2
750V Wall-mount 20kW DC Charging Station 3
750V Wall-mount 20kW DC Charging Station 4
