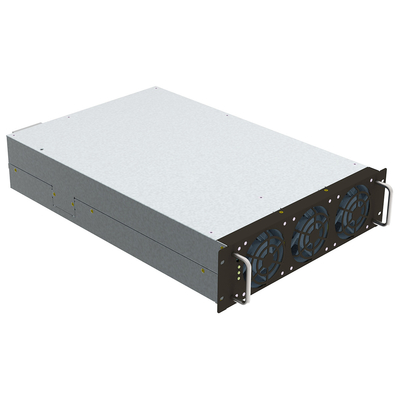

1000V Constant Power EV Charging Module 30 KW For DC Fast Charging Station

Basic Information
Place of Origin: CHINA
Brand Name: EN plus
Model Number: DCM1000100
Minimum Order Quantity: 100
Price: FOB: 660~1000 USD
Packaging Details: Cartons
Delivery Time: 30 work days
Payment Terms: T/T, L/C,
Supply Ability: 20000 PER MONTH
Voltage Level: 1000 V Input Voltage Range: 260 To 470 Vac
Input Current Range: 0 To 60 A Frequency: 50Hz/60Hz
Power Factor: ≥ 0.99 THDi: ≦ 5%
Output Voltage Range: 150Vdc To 1000Vdc Output Current Range: 0 To 100A
Rated Output Power: 30 KW Efficiency: ≥ 96.3%
Standby Power Consumption: < 8W MTBF: > 120,000 Hours
Working Temperature: -30℃ To +55℃ Full-load +55℃ To +75℃ (Used In The Derated Status) Communication Mode: CAN
High Light:

electric vehicle charging module


ev charger module

30 Kw Constant Power Charging Module For Dc Fast Charging Station


  1. Ultra-low standby loss, with the minimum power loss less than 8W.1000V Constant Power EV Charging Module 30 KW For DC Fast Charging Station 0
  2. Ultra-wide constant power range 300V~1000V DC and excellent low voltage constant current capability, with the maximum current output of 100 A.1000V Constant Power EV Charging Module 30 KW For DC Fast Charging Station 0
  3. High reliable protection performance in high and low temperature resistance, humidity, salt fog and other severe environment, which reduced the operating cost.
  4. -40°C~+75°C wide temperature range, with -30°C~+50°C full load operation, which is 5℃ higher than the industrial products.
  5. Four-dimensional intelligent wind speed control technology, effectively reduced the loss and noise, ensuring the product reliability.

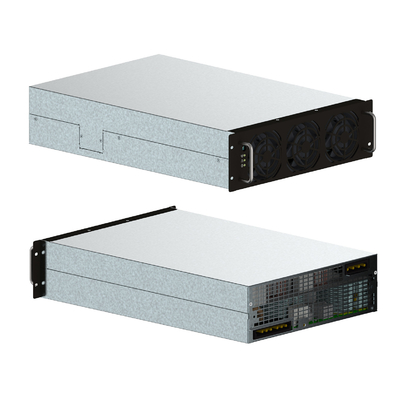

Product Introduction1000V Constant Power EV Charging Module 30 KW For DC Fast Charging Station 2

The DCM1000100 charging module is the core part of the EV chargier, adopting the latest optimized hardware design, with advanced control algorithms, made with advanced manufacturing technology, specially developed for EV charging station. It can compatible with almost all EV charging requirements, the module has the advantages of ultra-wide constant power range, excellent low-voltage constant-current capability, high weighted efficiency in the full power range, large ultimate temperature range and lower standby power loss. It makes charging system operation safe, reliable, economic and high adaptability to the environment.


Technical Parameters

Datasheet Model DCM1000100
Input Power Supply 3P+PE
Input Voltage 260~470V AC
Max. Input Current 60A
Startup Impulse Current ≤66A
Input Frequency 50/60Hz
Standby Power <8W
Output Output Voltage 150~1000V DC
Maximum Current 100A
Rated Power 30KW
Constant Power Yes @ 300~1000V DC
Electrical Parameter Power Factor ≥0.99 @ 50%~100% loading
THD ≤3% @ 100% loading
Efficiency ≥96%
Steady Voltage Accuracy ≤±0.5%
Steady Current Accuracy ≤±1%
Voltage Deviation ≤±0.5%
Current Deviation ≤±0.1A @ load current <10A, ≤±1% @ load current ≧10A
Ripple Factor Peak factor<1%, RMS factor<0.5%
Current Imbalance ≤5% @ 50%~100% loading
Soft Start Time ≤6S
Power Overshoot No
Sleep Function Yes
User Interface Enclosure Aluminized Zinc plate (SGLCC)
LED Indicator Green/Yellow/Red
Communication Configuration Manual/Auto
Protocol CAN
Sefety Ingress Protection IP20
Electrical Protection Over current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Certification CE
Certification Standard EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Warranty 2 Years
Environment Installation Slots
Cooling Method Fan cooling
Noise ≤65dB @ 100% loading
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000M
Package Product Dimension 455*300*94MM (D*W*H)
Package Dimension 564*380*172MM (L*W*H)
Net Weight 17KG
Gross Weight 18KG
External Package Carton


Application Scenarios:

DC Charging Stations for Pure electric passenger Bus, Electric Public Bus, Electric Minibus, Electric Logistic Vehicles.



  1. Pulse group active intelligent high-speed discharge and bleed-off circuit technology, improved the port security, with the charging efficiency up to 96.3%, greatly reduced the equipment depreciation, reliable and durable, more environmentally friendly.
  2. Ultra-wide output voltage range, 300VDC-1000VDC, meeting the most EV models charging requirements, adopting the latest active power factor correction(APFC), reduced the interference by harmonic waves to the grid, which is superior the industry-standard.
  3. The Dual DSP-based control design achieves full digital control of the charging module and determines the high reliability of the control.
  4. Hot-swappable design for easy installation and using, multiple safety protection measures of over voltage, under voltage protection, also with output short-circuit, over-temperature and air channel anomaly detection functions.
