Smart AC Electric Vehicle Business Charging Pile 22 KW With Case B Connectors

Standards: IEC 61851-1:2017;IEC 62196-2 OCPP Verison Communication Protocol: OCPP 1.6
Starting Mode: RFID Card ,APP Communication: WIFI
Installing: Wall Mounted/Pedestal Dispay Mode: 2.7'' Black & White Screen
Rated Power: 22 KW Power Wiring: 3P+N+PE
Rated Voltage: 400VAC Voltage Ranges: 380~415VAC
Rated Output Current: 32A Rated Frequency: 50Hz/60Hz
Working Temperature: -30℃~+50℃ IP Grade: IP54
Standby Loss: <15W Ambient Relative Humidity: ≤95%
Main Proetction Function: Overcurrent Protection Type-B Leakage Protection; Overvoltage Protection Undervoltage Protection Relay Over-temperature Protection; Charging Connector Holder Over Temperature Protection; CP Fault Protection; Relay Adhesion Protection; Weight: 11KG
Color: Black
Highlight:

smart ev charger

,

smart car charging station

New Electric Vehicle 22 KW Smart Business AC Charging Pile With Rfid Cards , Case B connectors,Type 2

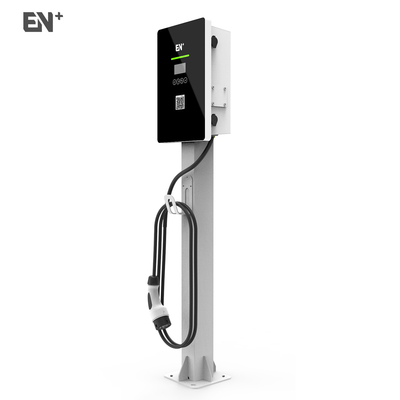

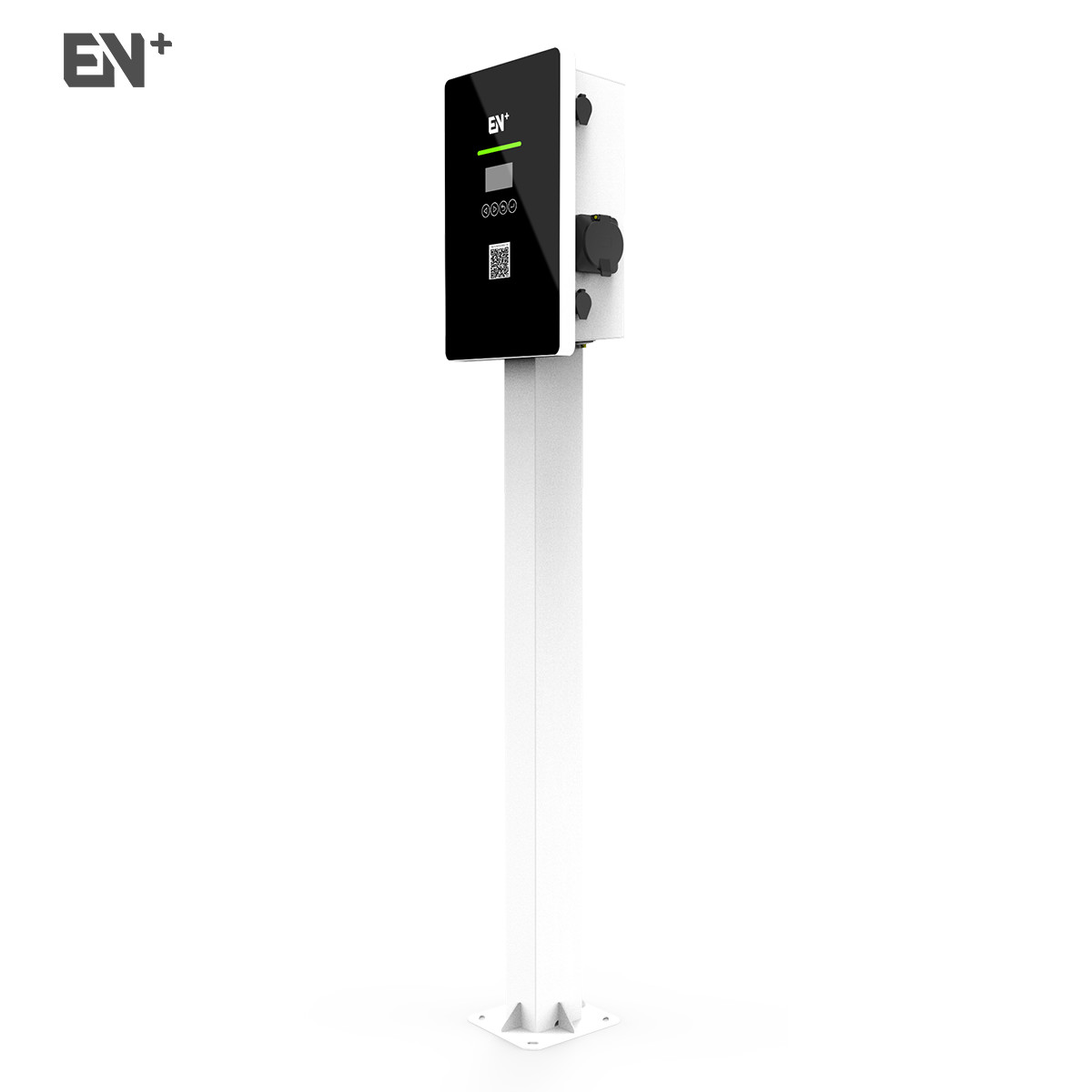

Smart AC  Electric Vehicle Business Charging Pile 22 KW With Case B Connectors 0Smart AC  Electric Vehicle Business Charging Pile 22 KW With Case B Connectors 1



Business Series Wallbox



Innovativeness

  • Temper glass panel, modern design
  • Business use with intelligent App control
  • WiFi Mesh technique, saving cost on wire installation



Intelligent Control

  • Wireless communication (WiFi/Bluetooth), Ethernet/4G optional
  • OCPP communication protocol with the backend
  • Intelligent operation by App and cashless payment



Flexible Option

  • Universal Type 2 socket, optional with Type 1/Type 2 charging cable
  • App operation or RFID authentication or plug and play
  • Wall-mounted or floor-stand installation



Secure and Safe

  • RCD Type A and 6mA DC residual current protection
  • MID certified energy meter with accurate measurement



Short Description:



22kW commercial charger provides fast charging to electric vehicle equipped with three-phase on-board charger. Designed with a type 2 charging socket, the charger is compatible with either type 1 or type 2 cable.

Compliant with the industrial standards, the charger use MID certified meter to ensure accuracy and built-in RCD to secure safety

The charger can be connected to a charging network with the help of EN-GATE gateway. Multiple public chargers in one location can be integrated in the network with only one internet communication connection.





Datasheet Model AC022K-BE-34
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Rated Current 32A
Frequency 50/60Hz
Output Output Voltage 400V AC
Maximum Current 32A
Rated Power 22KW
User Interface Charge Connector Type 2 socket
Enclosure Plastic PC940
Front Panel Temper glass
LED Indicator Green/Yellow/Red
LCD Display 2.7'' black & white screen
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Play/RFID card/App
Emergency Stop No
Communication WiFi Yes
Ethernet Optional
3G/4G Optional
OCPP OCPP 1.6 JSON (OCPP 2.0 optional)
Sefety Energy Meter MID certified
RCD 30mA Type A + 6mA DC
Ingress Protection IP54
Impact Protection IK08
Electrical Protection Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Certification CE
Certification Standard EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018
Warranty 2 Years
Environment Installation Wall-mount/Pole-mount
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000M
Package Product Dimension 452*295*148MM (H*W*D)
Package Dimension 560*380*210MM (L*W*H)
Net Weight 11KG
Gross Weight 12KG
External Package Carton



Starting Charging Your Car

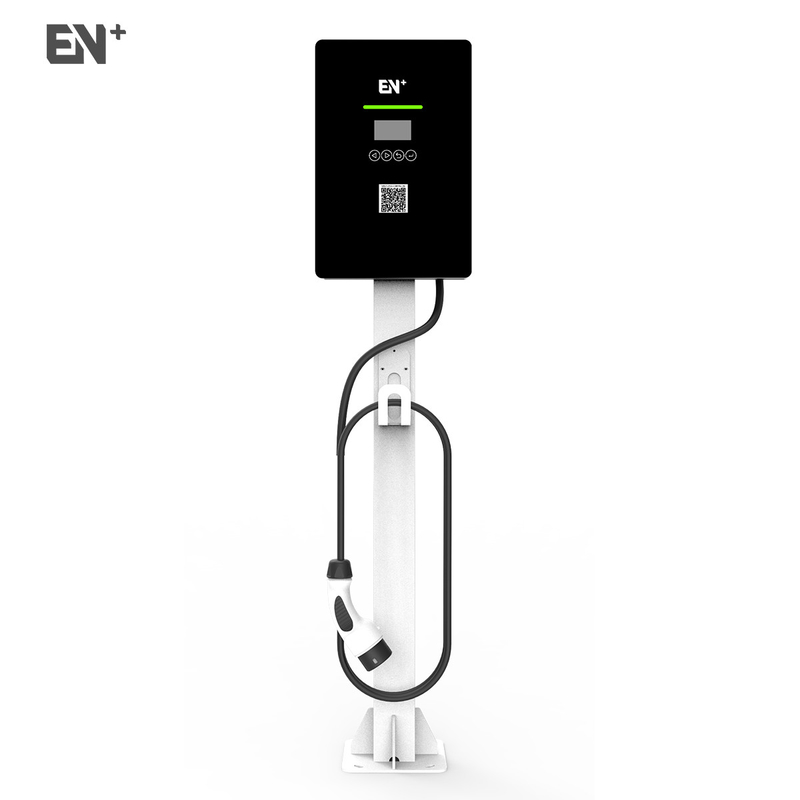

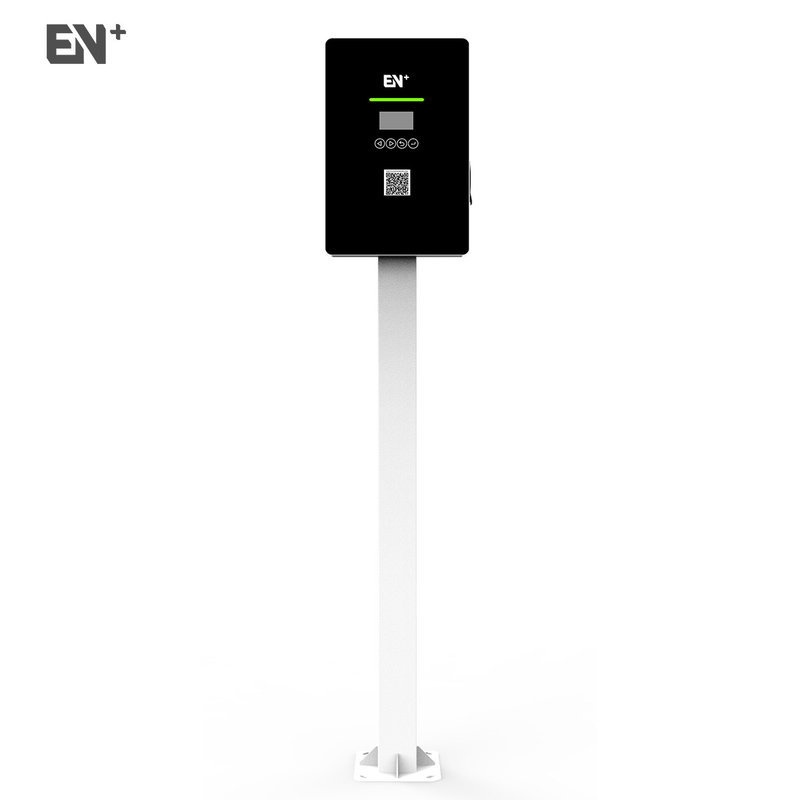

Smart AC  Electric Vehicle Business Charging Pile 22 KW With Case B Connectors 2
Smart AC  Electric Vehicle Business Charging Pile 22 KW With Case B Connectors 3
Smart AC  Electric Vehicle Business Charging Pile 22 KW With Case B Connectors 4
Smart AC  Electric Vehicle Business Charging Pile 22 KW With Case B Connectors 5
