| Place of Origin: | China |
|---|---|
| Brand Name: | EN plus |
| Certification: | CE |
| Model Number: | AC011K-AE-25 |
| Minimum Order Quantity: | 50 |
| Price: | FOB: 498~698 USD |
| Packaging Details: | Cartons |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 per month |
| Standards: | IEC 61851-1:2017;IEC 62196-2 | OCPP Verison Communication Protocol: | OCPP 1.6 |
|---|---|---|---|
| Network Interface: | WIFI/4G | Installing Mode: | Wall Mounted/Pedestal |
| Power Wiring: | 3P+N+PE | Rated Voltage: | 400 VAC |
| Rated Output Current: | 16A | Rated Frequency: | 50Hz/60Hz |
| Working Temperature: | -25℃～+50℃ | IP Grade: | IP65 |
| Standby Loss: | ＜15W | Ambient Relative Humidity: | ≤95% |
| Main Proetction Function: | Overcurrent Protection Type-B Leakage Protection; Overvoltage Protection Undervoltage Protection Relay Over-temperature Protection; Charging Connector Holder Over Temperature Protection; CP Fault Protection; Relay Adhesion Protection; | ||
| High Light: | commercial electric vehicle charging stations,smart car charging station |
||
Product description

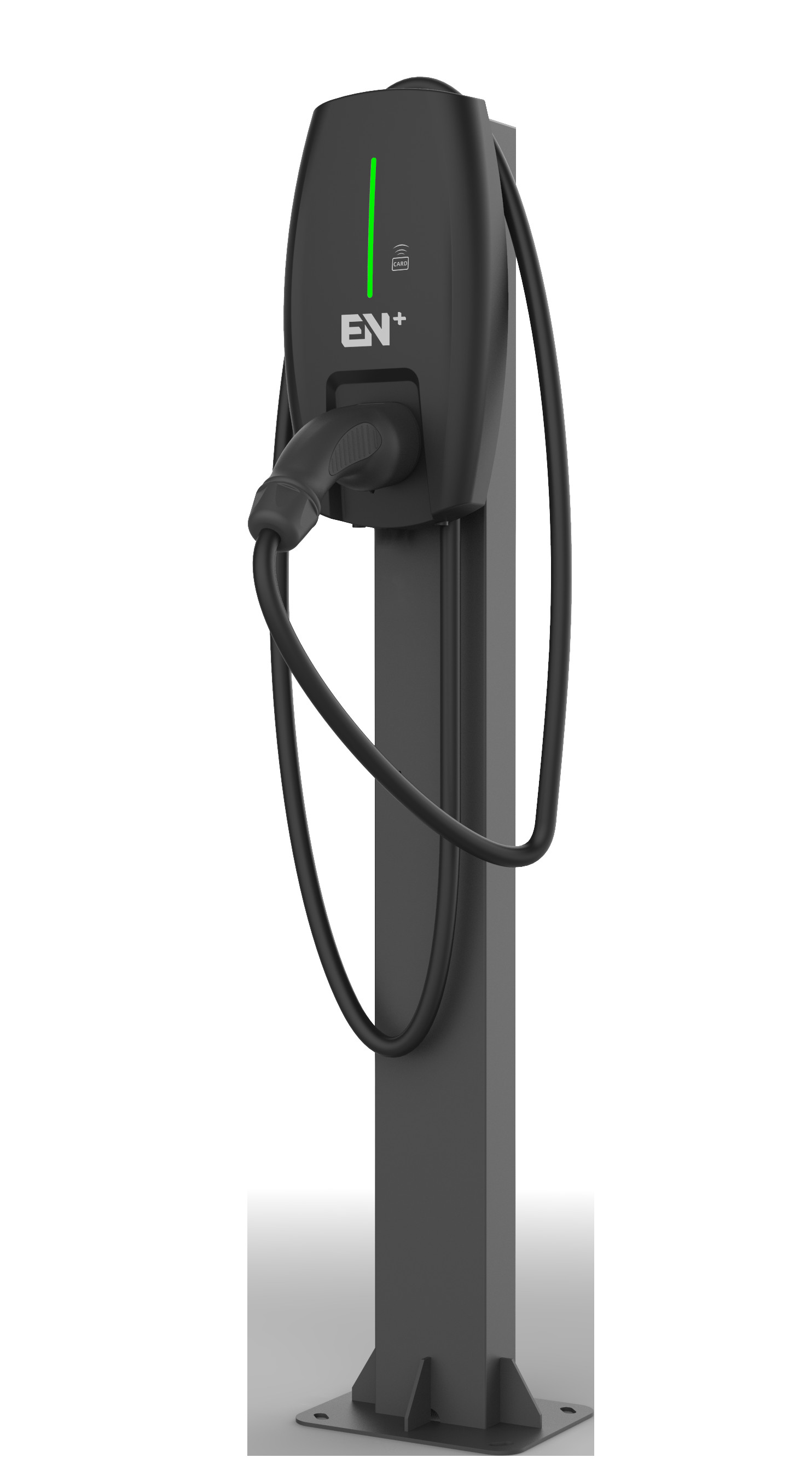

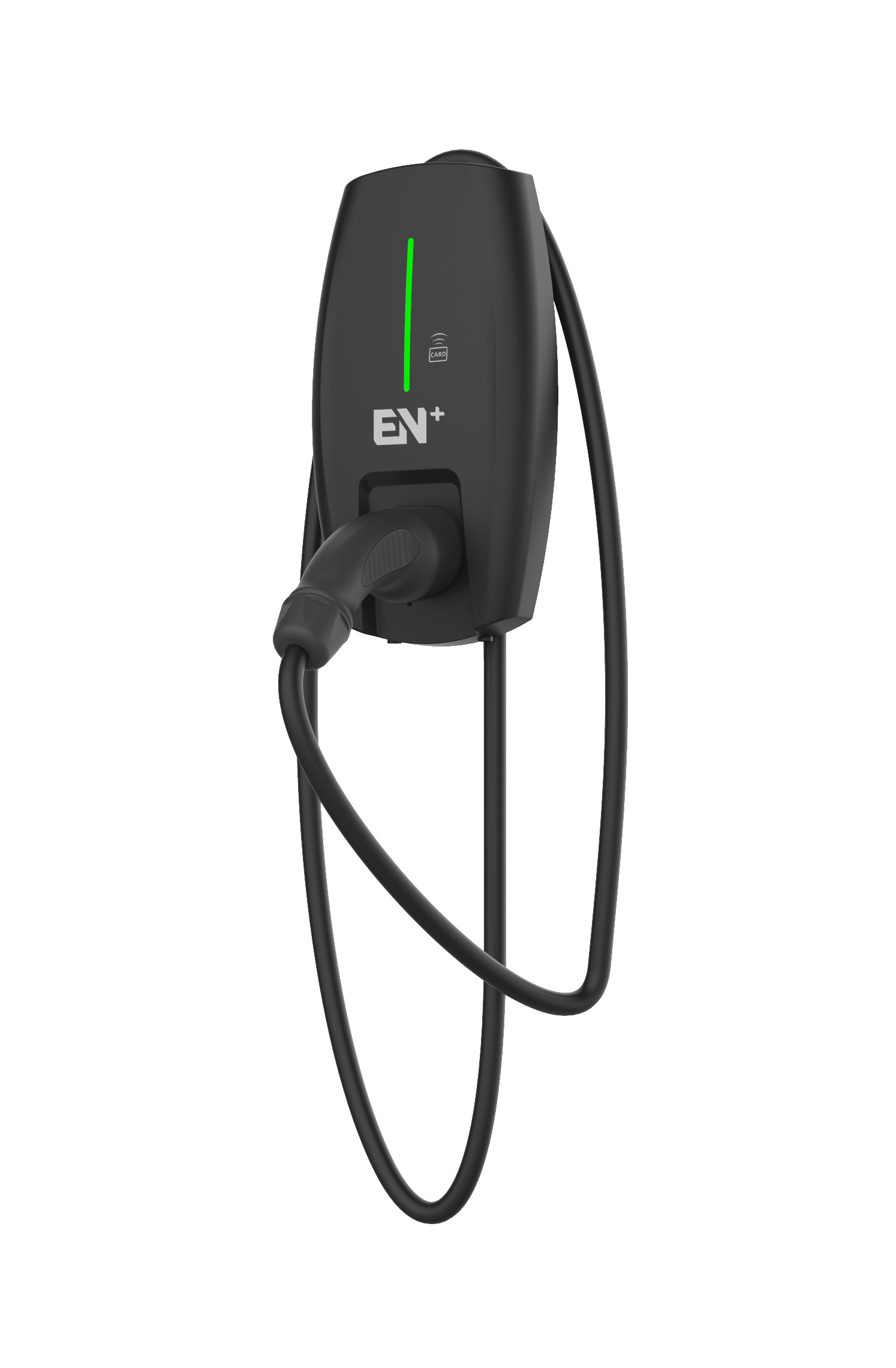

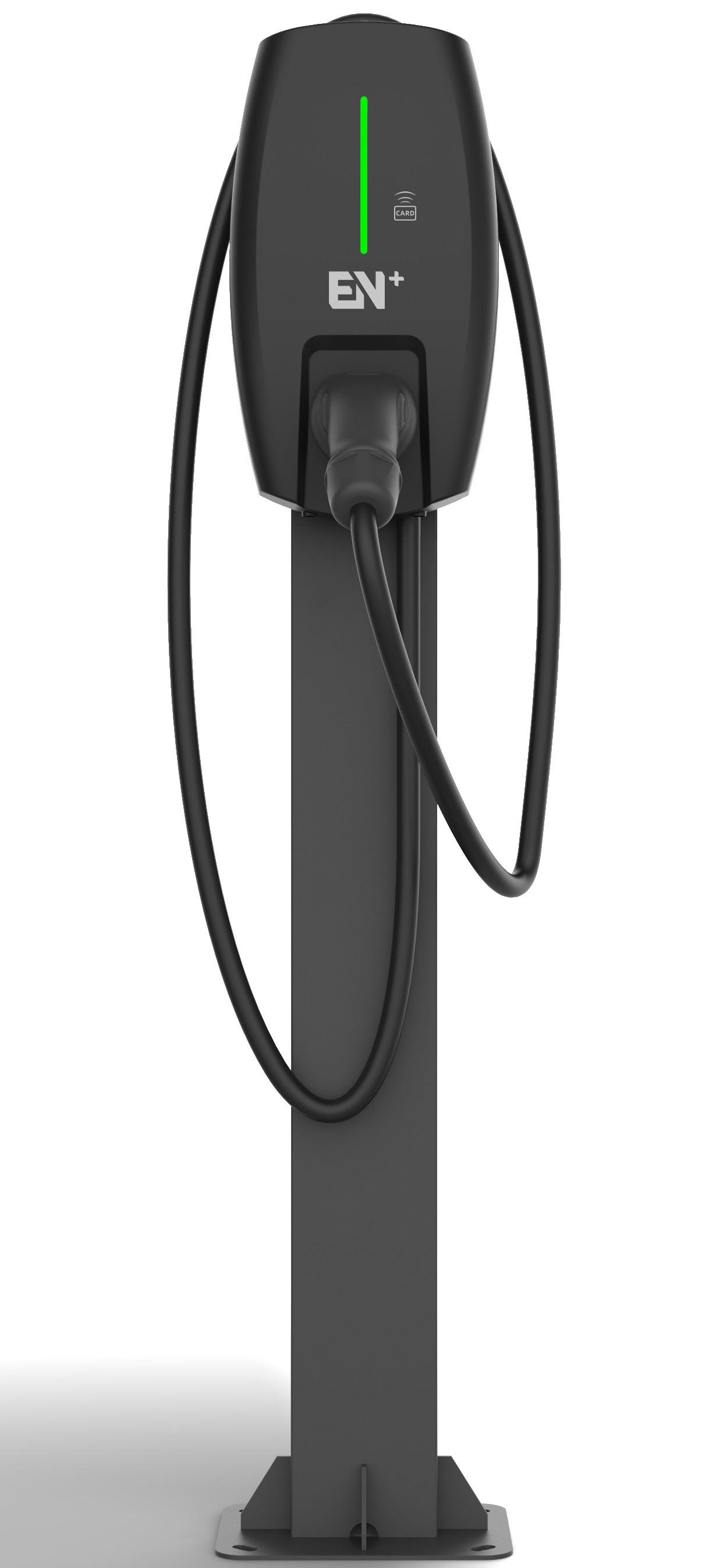

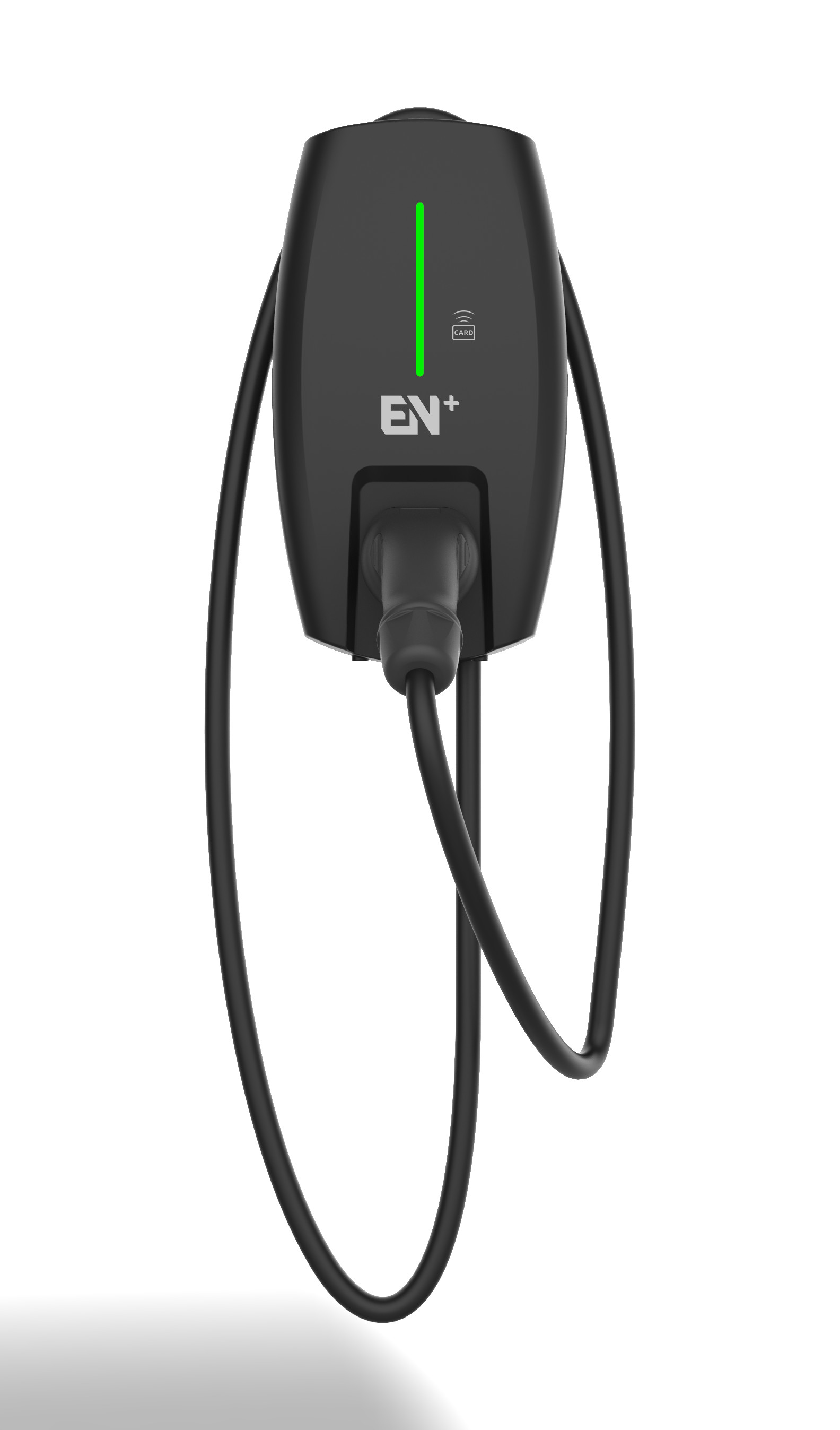

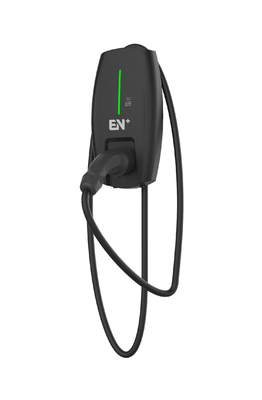

The samrt home series three-phase AC wallbox is a new generation of intelligent products launched by EN Plus to solve the pain points of home charging. Its appearance of this product adopts a streamlined and simple design, which is more refined and glitzy. Through the App, the car owner can choose the Bluetooth smart lock, timing charging function, or modify it to plug and play mode. At the same time, it can monitor charging information, set pile parameters, bind equipment and authorization, and upgrade remote software.
Product Fearures
Key Features:
Power: 11kW
Output Current: Max.16A
Output Voltage: 400V AC
Type 2 cable charging connector
Self-developed power module
Compliant with OCPP 1.6 ( JSON)
App operation or RFID authentication or plug & play
Protection Grade: IP65
Warranty: 2 years
| Datasheet | Model | AC011k-AE-25 |
| Input | Power Supply | 3P+N+PE |
| Rated Voltage | 400V AC | |
| Rated Current | 16A | |
| Frequency | 50/60Hz | |
| Output | Output Voltage | 400V AC |
| Maximum Current | 16A | |
| Rated Power | 11kW | |
| User Interface | Charge Connector | Type 2 cable |
| Cable Length | 4M | |
| Enclosure | Plastic PC940 | |
| LED Indicator | Green/Yellow/Red | |
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Play/RFID card/App | |
| Emergency Stop | No | |
| Communication | WiFi | Yes |
| Bluetooth | Optional | |
| OCPP | OCPP 1.6 JSON (OCPP 2.0 optional) | |
| Sefety | Energy Meter | No |
| RCD | 6mA DC | |
| Ingress Protection | IP65 | |
| Impact Protection | IK10 | |
| Electrical Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | |
| Certification | CE | |
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | |
| Warranty | 2 Years | |
| Environment | Installation | Wall-mount/Pole-mount |
| Work Temperature | -30℃~+50℃ | |
| Work Humidity | 5%~95% | |
| Work Altitude | <2000M | |
| Package | Product Dimension | 325*181*87MM (H*W*D) |
| Package Dimension | 434*324*210MM (L*W*H) | |
| Net Weight | 3.2KG | |
| Gross Weight | 4.0KG | |
| External Package | Carton |
